Description
Key Features:
– **High Durability**: With a mechanical life of 100,000 cycles and an electronic life of 10,000 cycles, this switch is built to last.
– **Excellent Electrical Performance**: Offers a dielectric strength of 1,500VAC for 1 minute, contact resistance ≤50mΩ, and insulation resistance ≥1,000MΩ.
– **Wide Operating Temperature**: Operates efficiently in temperatures up to T85, ensuring reliability in various conditions.
– **Easy Installation**: Features a panel cutout of 28×11 mm and standard 6.3×0.8 mm terminals, simplifying the installation process.
– **Material Excellence**: Made from durable PA66 material, ensuring longevity and resistance to wear and tear.
As a factory-direct supplier, we offer wholesale pricing and exceptional customer service. Our switches are perfect for cars, industrial machinery, and electric equipment, providing a reliable and cost-effective solution for your switching needs.
|
item
|
value
|
|
Certification
|
CQC CE ROHS
|
|
Model Number
|

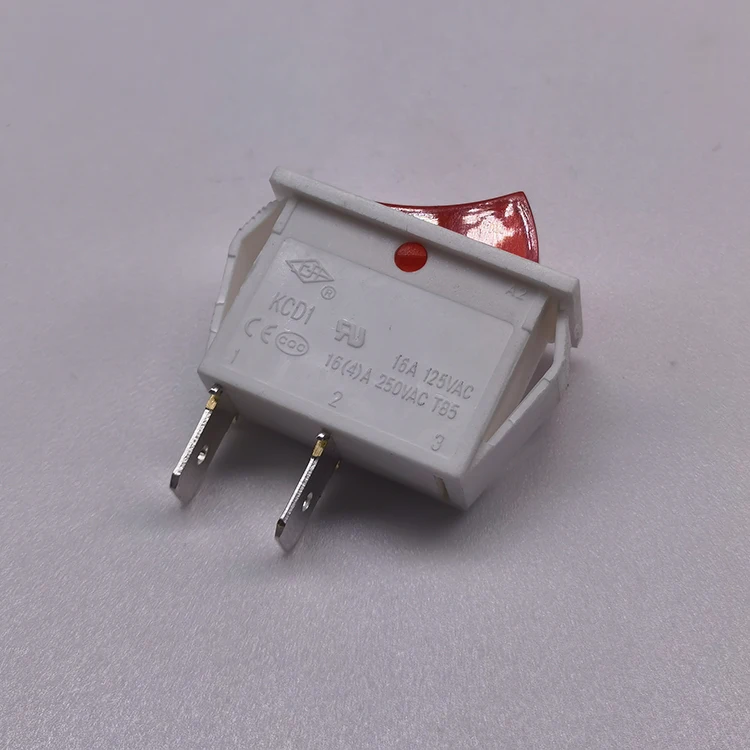

KCD1-12-CA1A-W-W-07
|
|
Max. Current
|
16A
|
|
Max. Voltage
|
250VAC
|
|
Mechanical Life
|
100,000 cycles
|
|
Electronic Life
|
10,000 cycles
|
|
Dielectric Strength
|
1,500VAC,1min
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1,000MΩ
|
|
Operating Temperature
|
T85
|
|
Circuit
|
SPDT ON-ON 3Pin
|
|

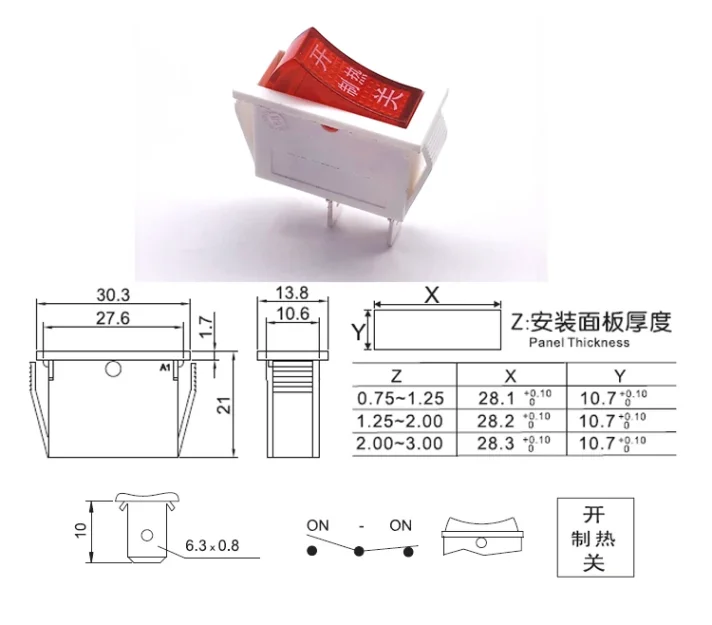

Panel cutout
|
28×11 mm
|
|
Terminal
|

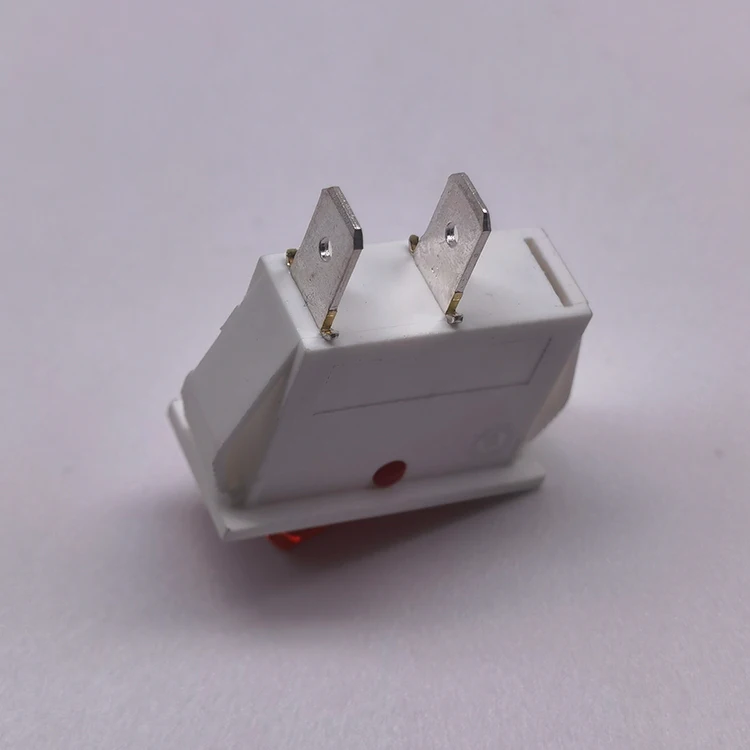

6.3×0.8 mm standard
|
|
Color
|

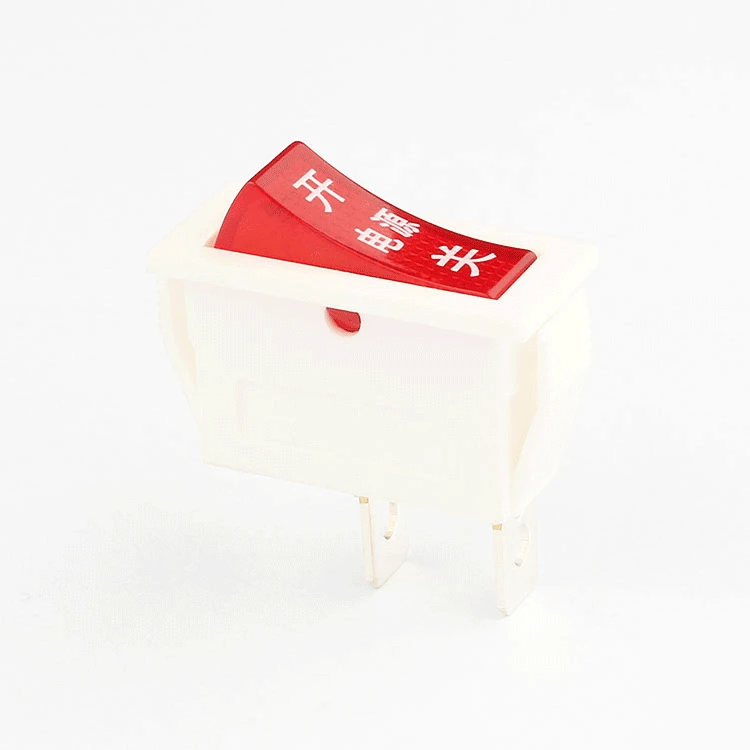

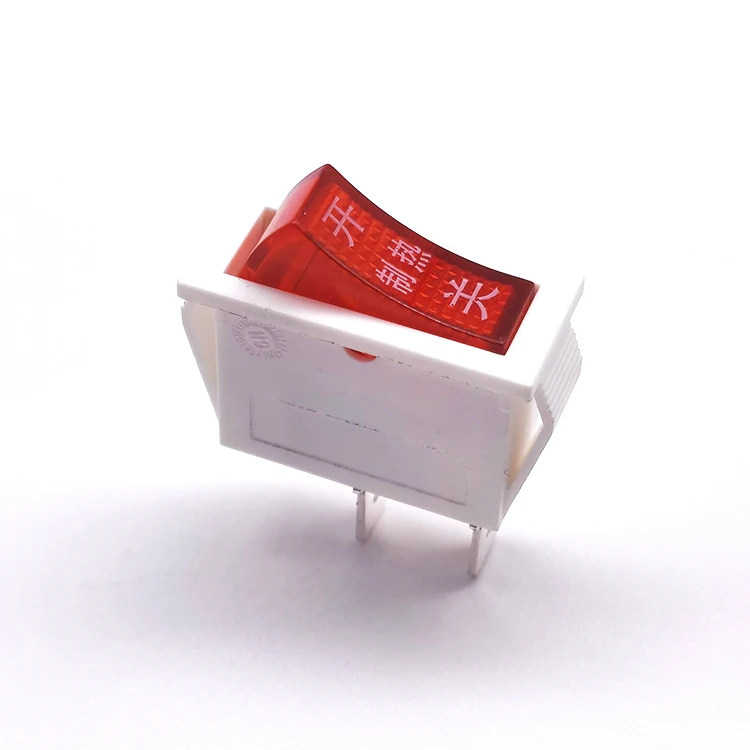

White housing, red actuator
|
|
Material
|
PA66
|
Why Choose Our Yongxing KCD Rocker Switch?
Our Yongxing KCD Rocker Switch stands out for its durability, excellent electrical performance, and wide operating temperature range. With a mechanical life of 100,000 cycles and an electronic life of 10,000 cycles, it ensures long-lasting reliability in demanding environments. The switch's high dielectric strength, low contact resistance, and high insulation resistance further enhance its performance, making it ideal for medical equipment, cars, industrial machinery, and electric equipment.
Key Advantages Over Competitors
Unlike many competitors, our switch is made from high-quality PA66 material, ensuring superior durability and resistance to wear and tear. Additionally, our factory-direct pricing and exceptional customer service provide unbeatable value. With certifications including CQC, CE, and ROHS, you can trust in the safety and compliance of our product.
Installation and Compatibility
Our switch features a standard 6.3x0.8 mm terminal and a 28x11 mm panel cutout, making installation quick and easy. It is compatible with a wide range of applications, including medical equipment, cars, industrial machinery, and electric equipment, providing a versatile and reliable switching solution.
