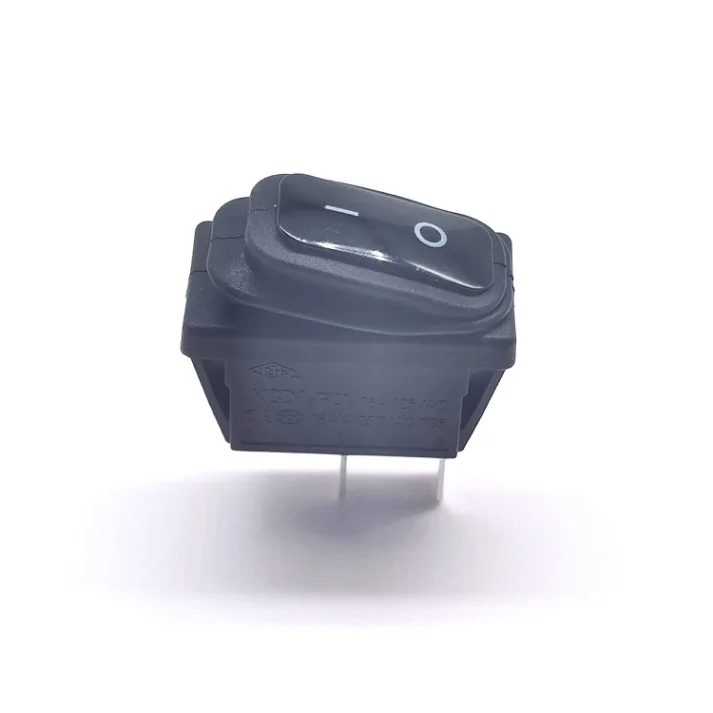

Description
Key Features:
– IP65 waterproof rating ensures protection against dust and water ingress.
– Contact resistance ≤50mΩ, insulation resistance ≥1000MΩ, and dielectric strength of 1500VAC for 1 minute guarantee excellent electrical performance.
– Operating temperatures of T55, T85, and T125 make it suitable for various environments.
– Mechanical life >10000 cycles and electrical life of 10000 cycles ensure longevity and reliability.

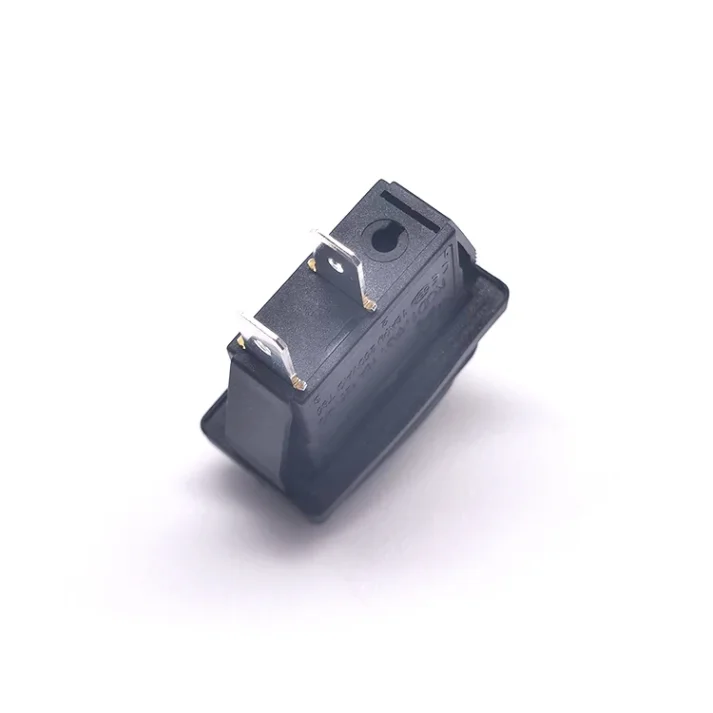

– Plug-in termination type and 28.2*10.7mm panel cutout make installation quick and easy.
Our KCD1-11 Rocker Switch is certified by CQC, CE, CB, ENEC, and ROHS, ensuring compliance with international safety standards. Available in black, this switch is not only functional but also aesthetically pleasing. As a trusted supplier, we offer competitive pricing, fast shipping, and excellent customer service. Order now and experience the Yongxing difference!
|
Certification
|
||
|
CQC CE
|
T85 AC 250v 16(4)A
|
|
|
USA
|
AC 125/250v 16R(4)A
AC 125v 1HP
|
|
|
CB ENEC17
|
T125 AC 250v 16(4)A / 10(4)A
T85 AC 250v 16(4)A
AC 250v 16A
|
|
|
Specification
|
||||||||
|
Contact Resistance
|
≤50mΩ
|
|||||||
|
Insulation Resistence
|
≥1000MΩ
|
|||||||
|
Dielectric Strength
|
AC 1500v,1min
|
|||||||
|
Operating Temperation
|
T55,T85,T125
|
|||||||
|
Electrical Life
|
10000
|
|||||||
|
How To Order
|
||||||||
|
Switch Details
|
series number -circuit code -actuator,housing,termination -housing color,actuator color -marking -lamp voltage
|
|||||||
|
Packing
|
||||||||
|
Plastic Box
|
First in plastic box , then in export carton,quantity varies according to switch size.
|
|||||||
|
Plastic Bag
|
Normally 100 pieces in one plastic bag, then in export carton, quantity varies according to switch size.
|
|||||||
|
Lead Time
|
||||||||
|
Quantity(Pieces)
|
1 – 3000
|
>3000
|
||||||
|
Est. Time(days)
|
30
|
To be negotiated
|
||||||
|
Shipping
|
||||||||
|
Port
|
Shanghai
|
|||||||
Why Choose Yongxing KCD1-11 Rocker Switch?
The Yongxing KCD1-11 Rocker Switch stands out for its high-quality construction, IP65 waterproof rating, and excellent electrical performance. With a maximum current of 16A and voltage of 250VAC, it's suitable for a wide range of applications, including cars, industrial machinery, and electric equipment. Its long mechanical and electrical life ensure reliability and durability.
What Are the Key Features?
Key features include a contact resistance ≤50mΩ, insulation resistance ≥1000MΩ, and dielectric strength of 1500VAC for 1 minute. The switch operates at temperatures of T55, T85, and T125, making it versatile for various environments. It also features a plug-in termination type and a 28.2*10.7mm panel cutout for easy installation.
Why Buy from Us?
As a factory direct supplier, we offer wholesale pricing, fast shipping, and excellent customer service. Our KCD1-11 Rocker Switch is certified by CQC, CE, CB, ENEC, and ROHS, ensuring compliance with international safety standards. Order now and experience the Yongxing difference!
