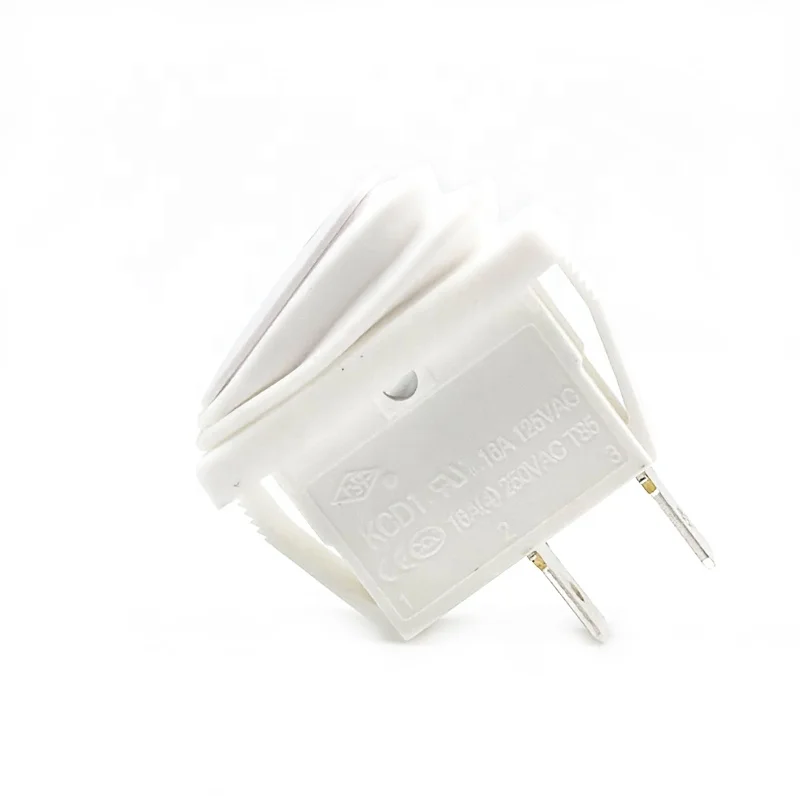

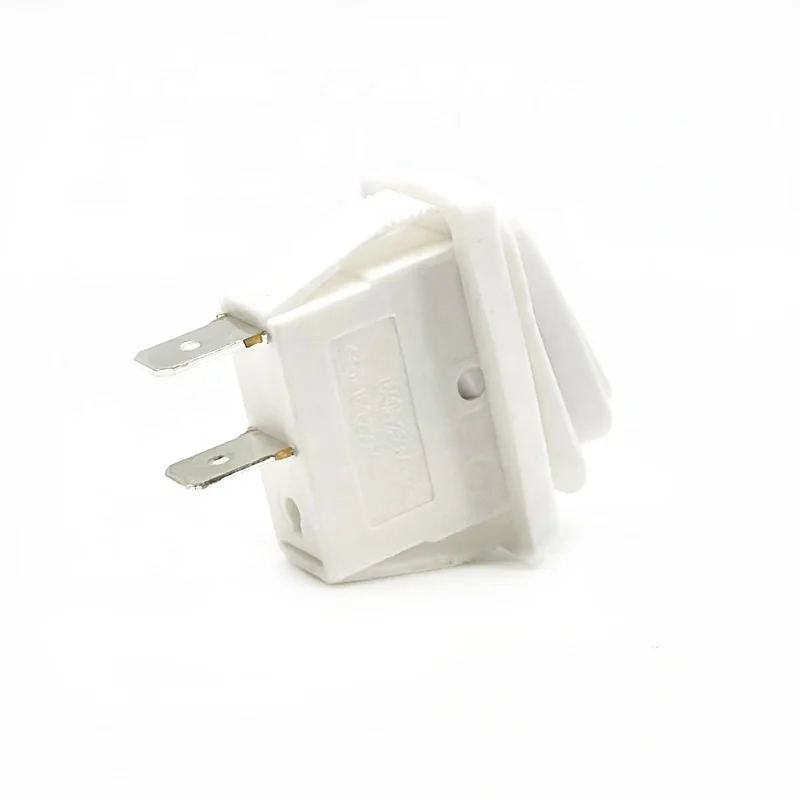

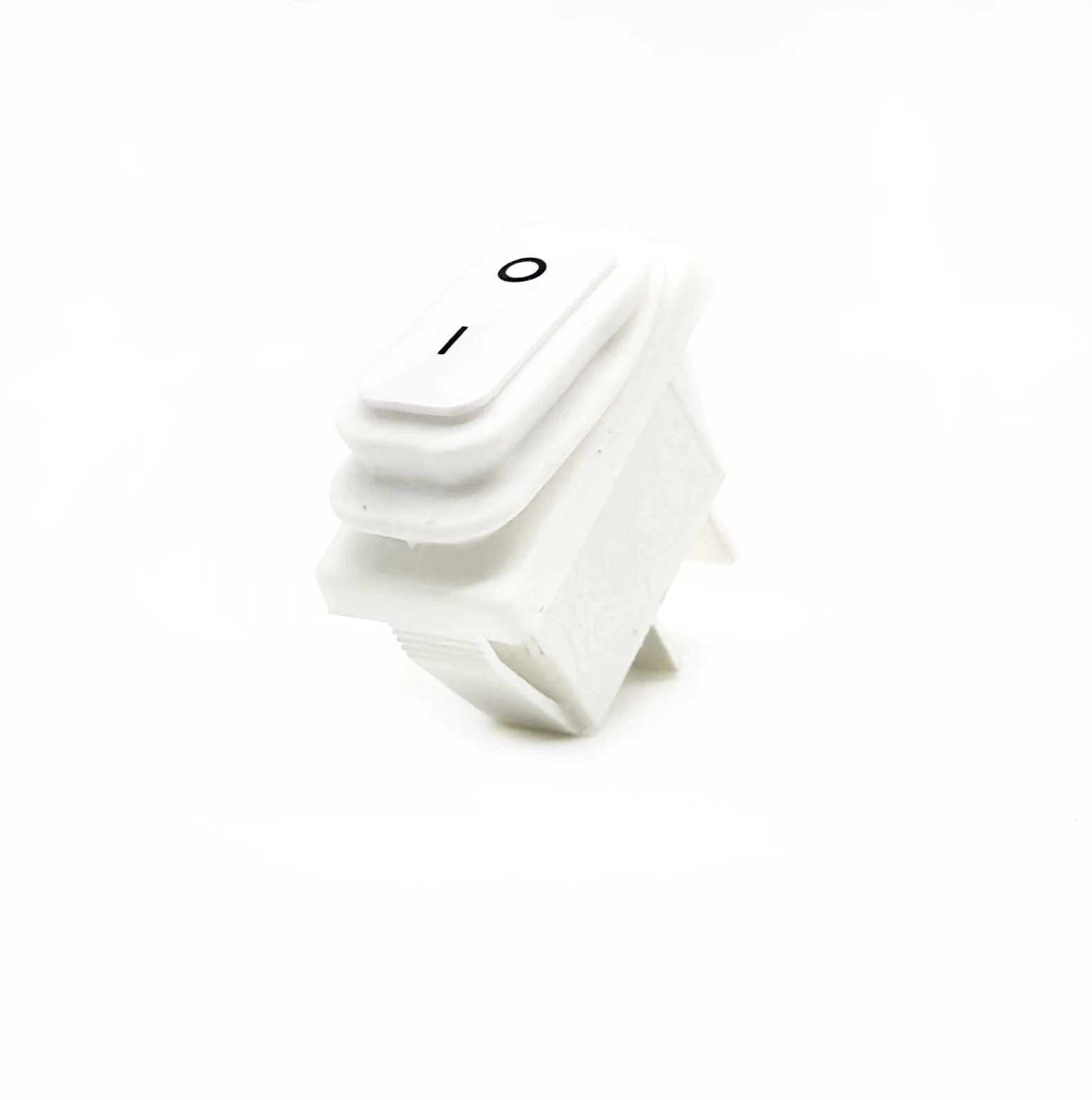

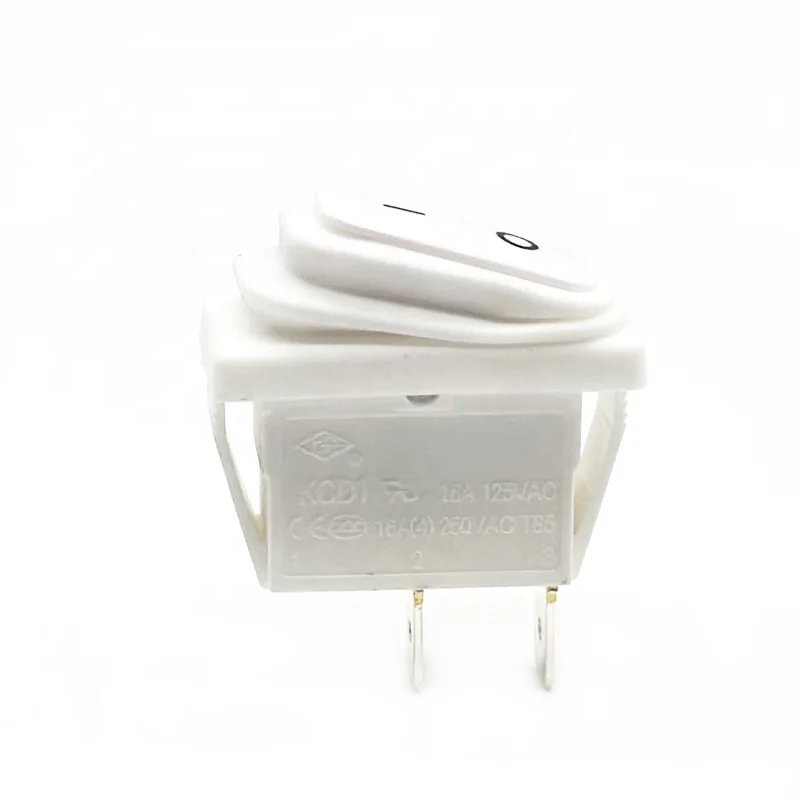

Yongxing KCD1 16A 250V Waterproof Rocker Switch | Factory Wholesale Supplier

Category: Tags: , ,
500 - 1,999  pieces
$0.65

2,000 - 4,999  pieces
$0.62

>= 5,000  pieces
$0.59
0 reviews

Yongxing Factory Wholesale Waterproof Rocker Switch Supplier

Clean All

Description

Looking for a high-quality, durable waterproof rocker switch? Look no further than Yongxing’s KCD1 series! As a factory direct supplier and wholesaler, we offer competitive prices and reliable quality. Our KCD1 16A 250V 2-pin SPST rocker switch is perfect for cars, industrial equipment, and more. With an IP65 rating, it’s built to withstand harsh environments. The switch boasts a mechanical life of 100,000 cycles and an electronic life of 10,000 cycles, ensuring long-lasting performance. It’s also UL, ENEC, CB, CE, and CQC certified, guaranteeing safety and compliance. With a contact resistance of ≤50mΩ and insulation resistance of ≥1000MΩ, it offers excellent electrical properties. The dielectric strength of 1500V AC for 1 minute ensures reliable operation. Available in white, it complements any design. Customization is available for large orders, and our 60 senior engineers, injection molding workshop, and independent plant ensure top-notch quality. Choose Yongxing for your rocker switch needs!
rated current/votage 16a/250v ac
electronic life 10000cycles
dielectric strength 1500v
certifications UL ENEC CB CE CQC
contact resistance ≥1000MΩ

Electronic component product for cross-border e-commerce


Why Choose Yongxing's Waterproof Rocker Switch?

Yongxing's KCD1 waterproof rocker switch is designed for durability and reliability. With an IP65 rating, it's perfect for use in harsh environments, ensuring your equipment stays operational even in wet conditions. The switch's 100,000 cycle mechanical life and 10,000 cycle electronic life mean it will last longer than many competitors, reducing the need for frequent replacements.

What Are the Key Features of This Switch?

Our switch boasts a 16A 250V rating, making it suitable for a wide range of applications. The 2-pin SPST design simplifies installation and operation. It's also UL, ENEC, CB, CE, and CQC certified, ensuring safety and compliance with international standards. The white color and compact size make it a versatile choice for various designs.

Can I Customize the Switch for My Needs?

Yes! As a factory direct supplier, we offer customization services for large orders. Our 60 senior engineers, injection molding workshop, and independent plant allow us to tailor the switch to your specific requirements. Whether you need a different color, size, or functionality, we can make it happen.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

16A
Max. Voltage

250VAC
Place of Origin

Shanghai, China
Brand Name

Yongxing
Model Number

KCD1-11-FA1A-B-B-01
Application

Cars, Industrial, electric equipment
Material

plastic
Pins

2P
Whether the smart

NO
Mechanical Life

100000
IP level

IP65
Switch Action

ON-OFF
Termination Type

Plug-in
Function

SPST
Product type

Rocker Switch T125 55
pins

2
Contact Resistance

≤50mΩ
Insulation resistance

≥1000MΩ
Dielectric Strength

1500V AC , 1min
Electronic Life

10,000 cycles
Operating Temperature

T55 T85 T125
