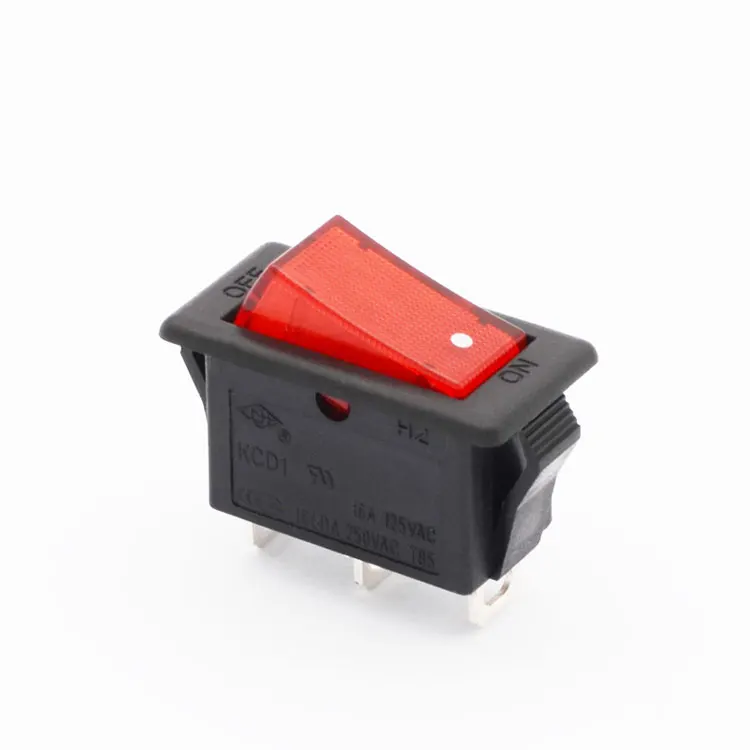

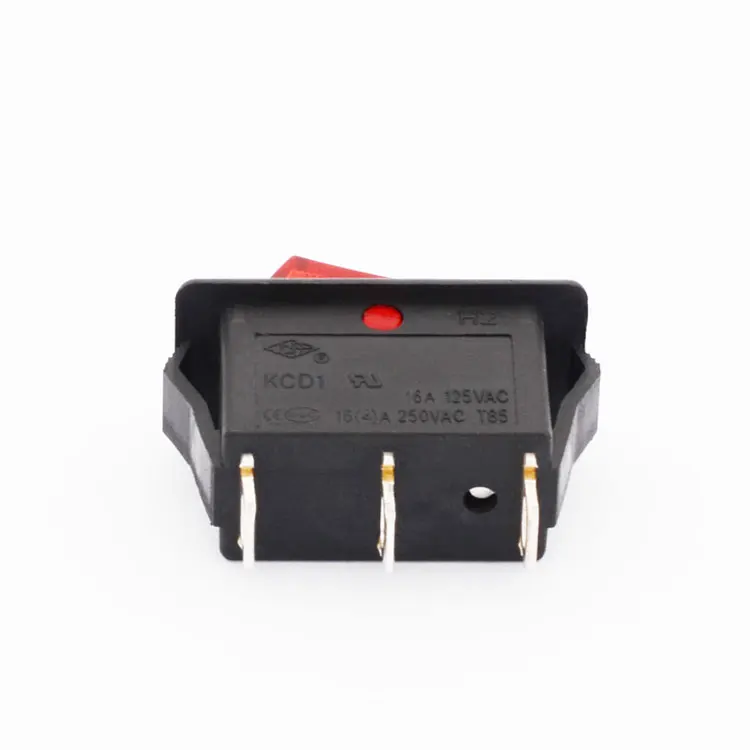

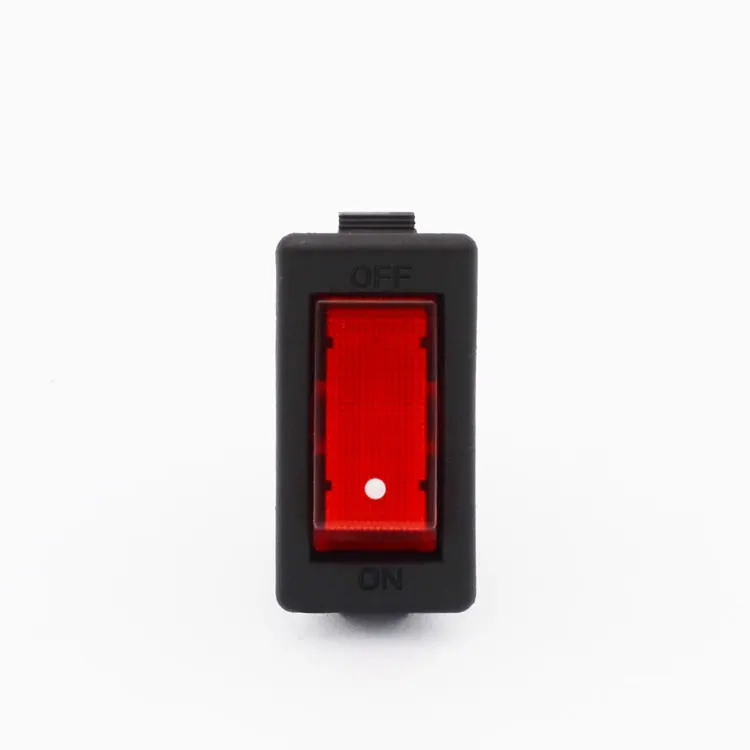

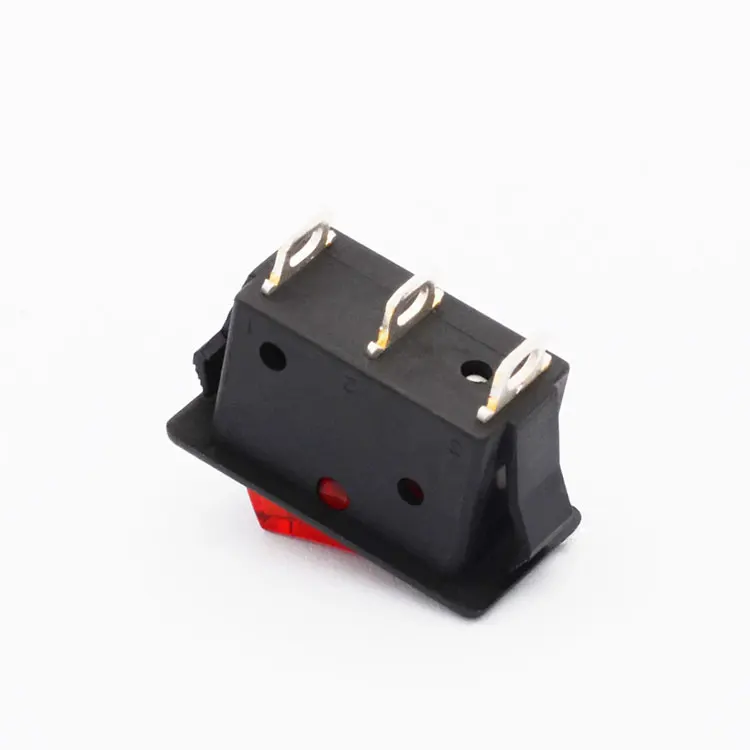

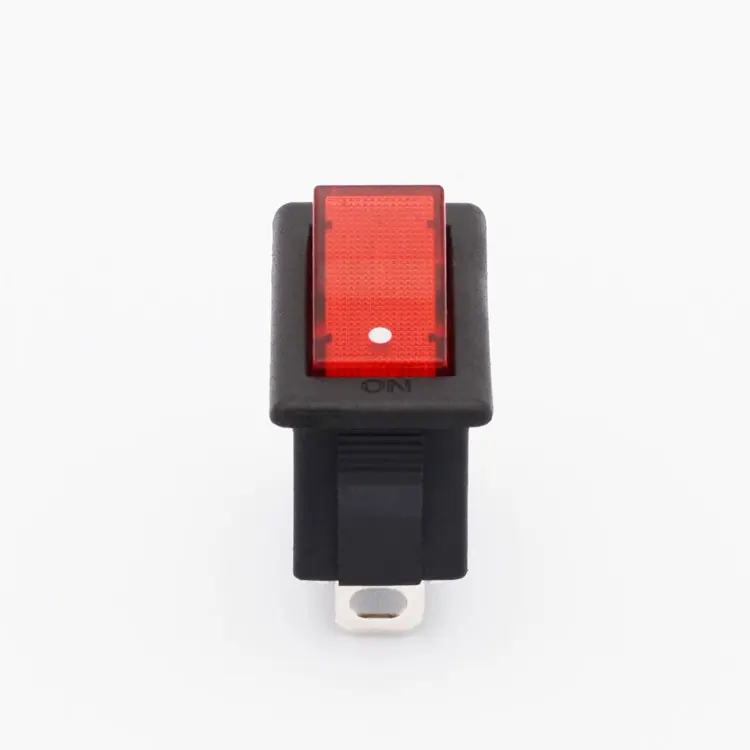

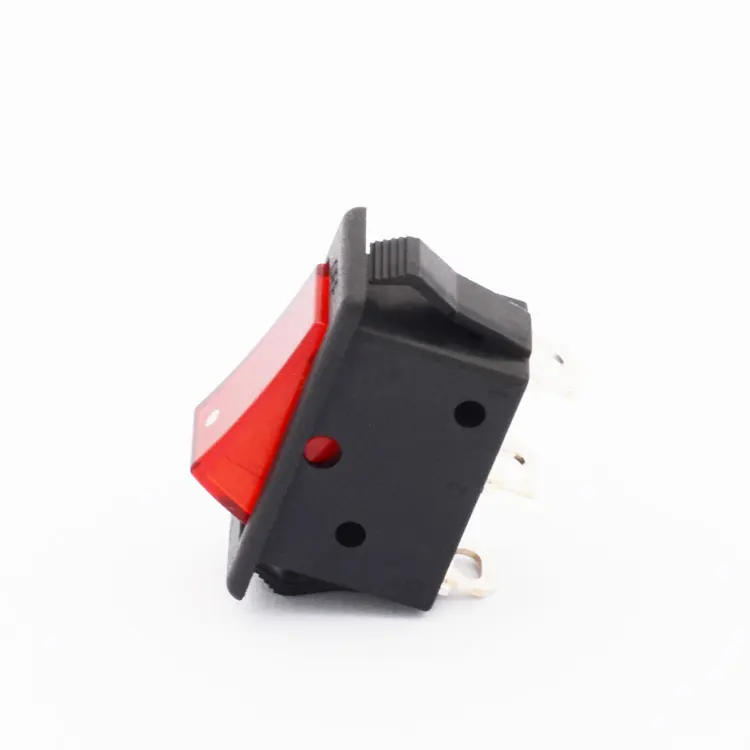

Yongxing KCD1 Illuminated Rocker Switch – High-Quality Wholesale Option
As a factory direct supplier, we are proud to offer the Yongxing KCD1 illuminated rocker switch. This switch is perfect for various applications, especially where a waterproof solution is needed.

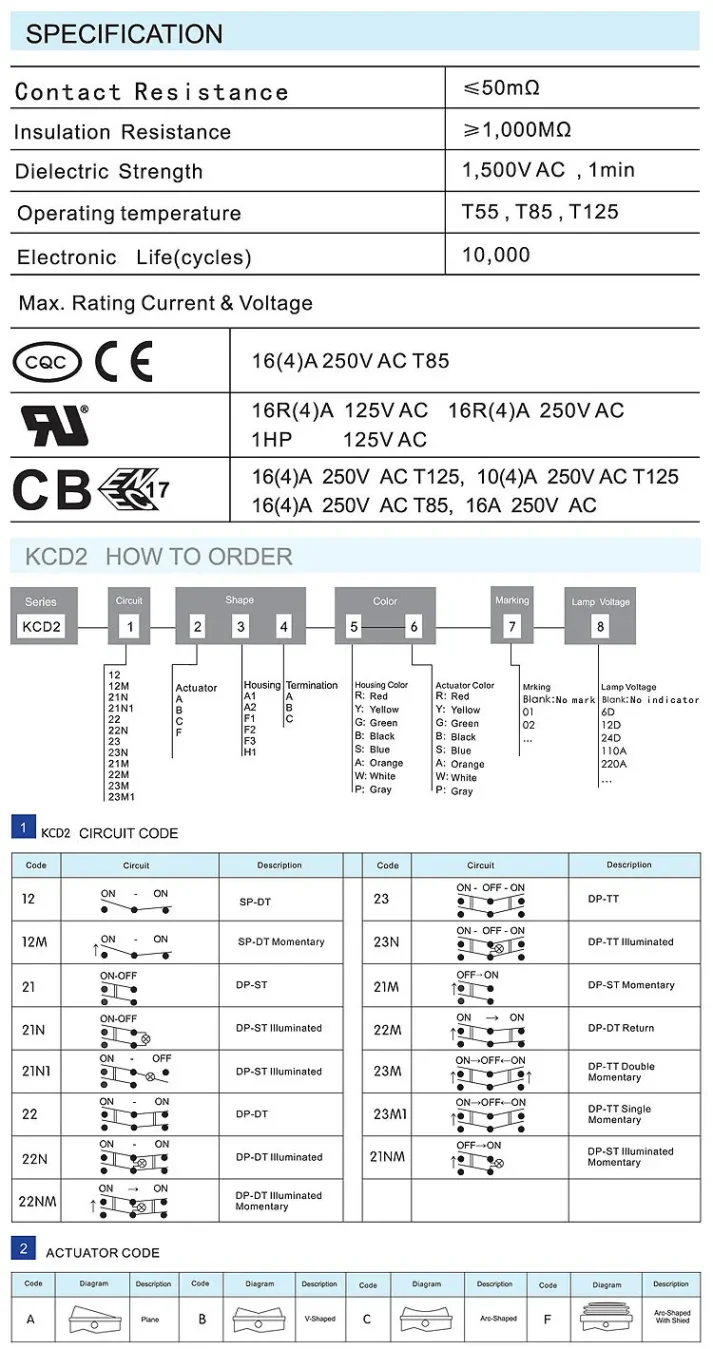

Product Specifications
- Max. Current: 16A
- Max. Voltage: 250V AC
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥1,000MΩ
- Electronic Life: 10,000 cycles
- IP Level: IP65
- Pins: 3p
- Color: Red
- Certifications: CQC, CE, RoHS, ENEC, UL, CB
Product Advantages
Our Yongxing KCD1 illuminated rocker switch stands out from competitors with its high IP65 rating, ensuring excellent waterproof performance. It’s made of durable plastic, making it suitable for harsh environments. With multiple certifications, including CQC, CE, RoHS, ENEC, UL, and CB, it meets international safety standards.
Usage
This switch is ideal for use in waterproof applications, such as outdoor equipment, marine devices, and industrial machinery. Its illuminated design makes it easy to locate and operate in low-light conditions.
After-Sales Service
We provide comprehensive after-sales service, including technical support and warranty coverage. As a reliable supplier, we ensure that our customers are satisfied with their purchase.
| Contact Resistance | ≤50m Ω |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles momentary rocker switch on off on |
| Certification |
CQC , CE , UL , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
16R(4)A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
16(4)A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |
Why Choose Yongxing KCD1 Illuminated Rocker Switch?
The Yongxing KCD1 illuminated rocker switch is a top choice for its high IP65 rating, ensuring excellent waterproof performance. Its illuminated design makes it easy to operate in low-light conditions, and its durable plastic construction ensures longevity in harsh environments.
What Are the Key Features?
Key features include a 16A 250V AC rating, 3p pins, and multiple certifications such as CQC, CE, RoHS, ENEC, UL, and CB. These certifications guarantee that the switch meets international safety standards.
Where Can It Be Used?
This switch is perfect for outdoor equipment, marine devices, and industrial machinery. Its waterproof design and high durability make it suitable for a wide range of applications where reliability is crucial.
