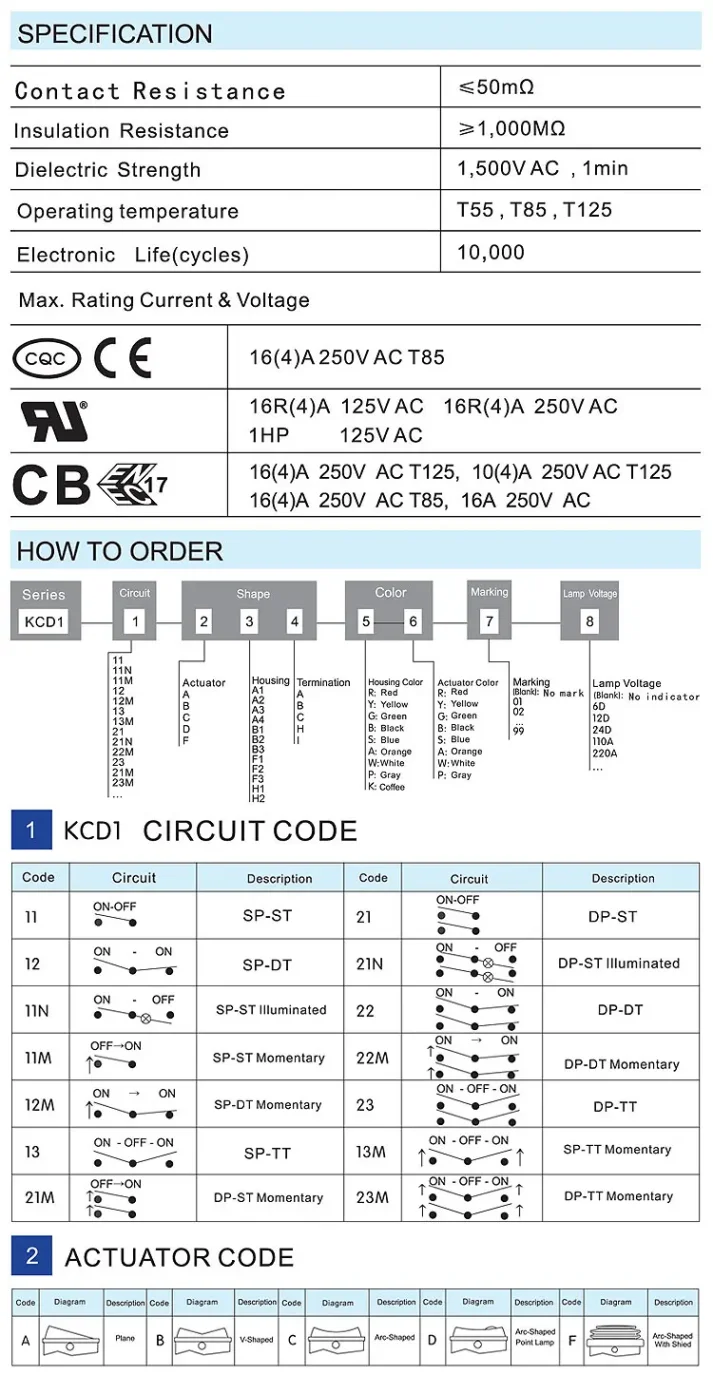

Description
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles |
| Mechanical life(cycles) | 50,000 – 100,000 cycles |
| Certification |
CQC , CE , UL , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
16R(4)A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
16(4)A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |

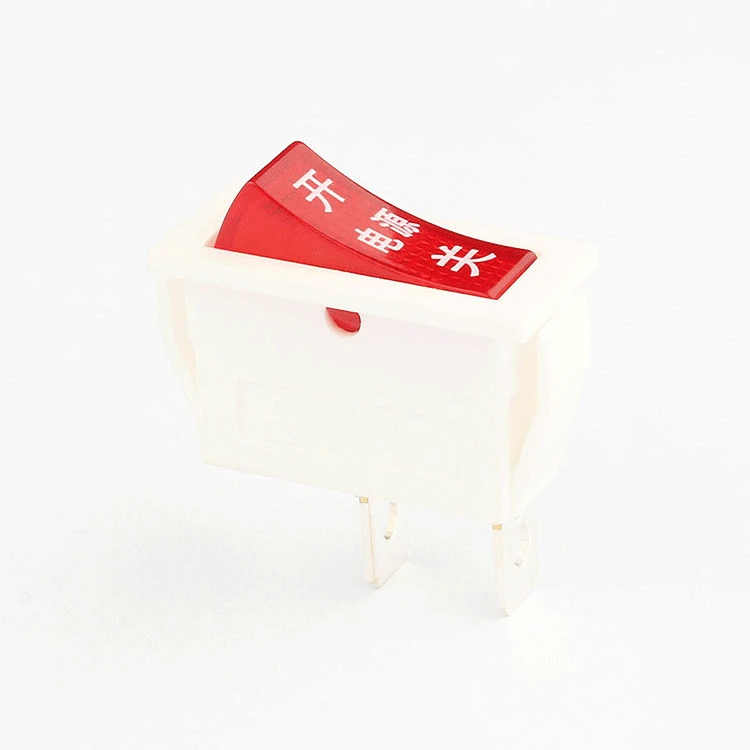

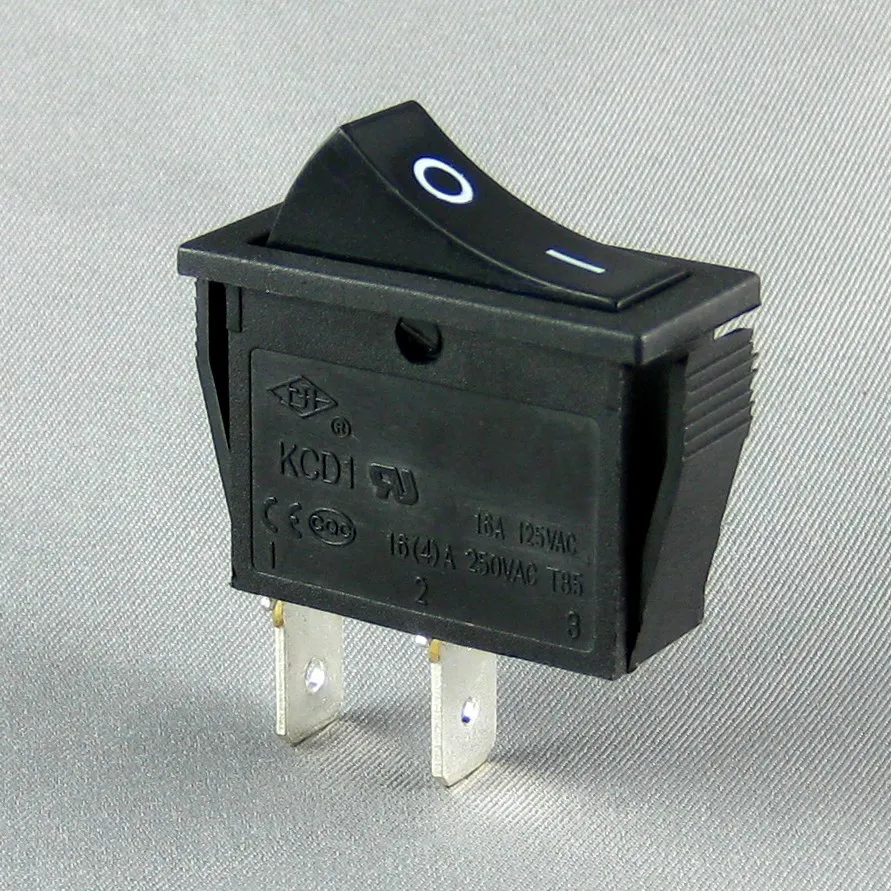

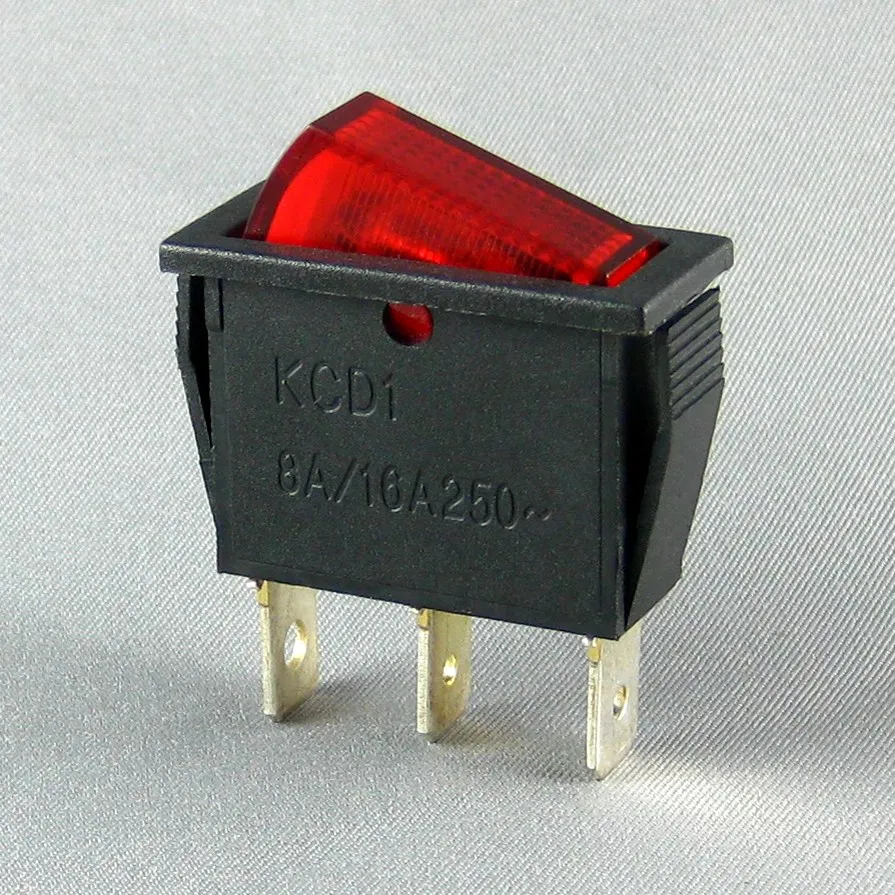

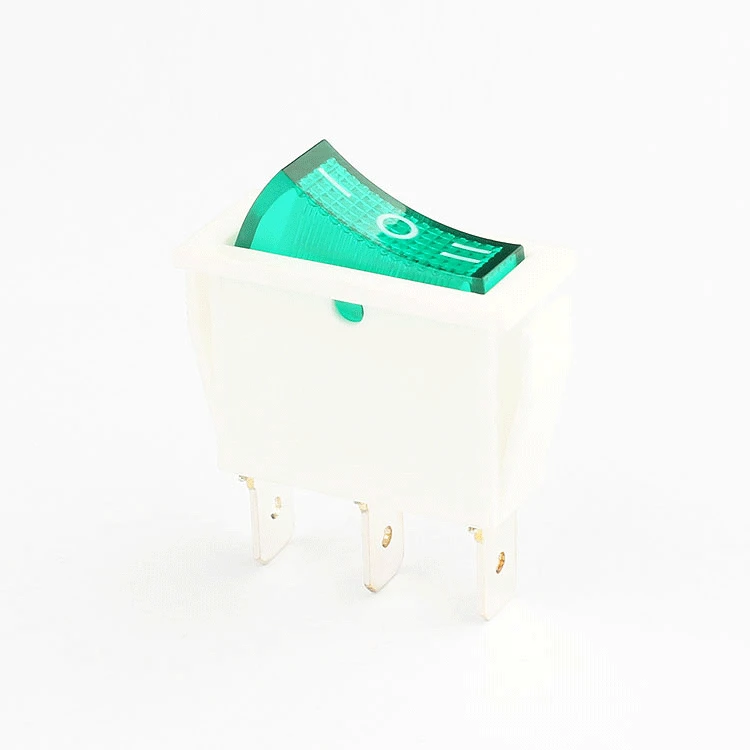

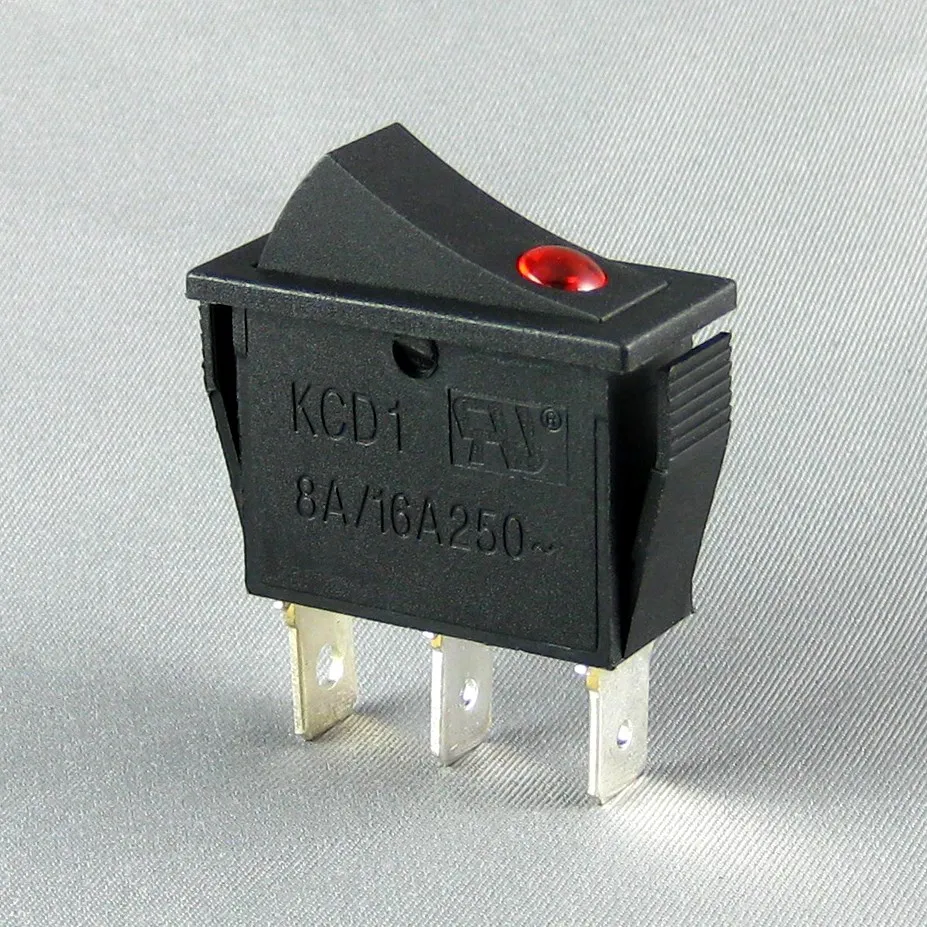

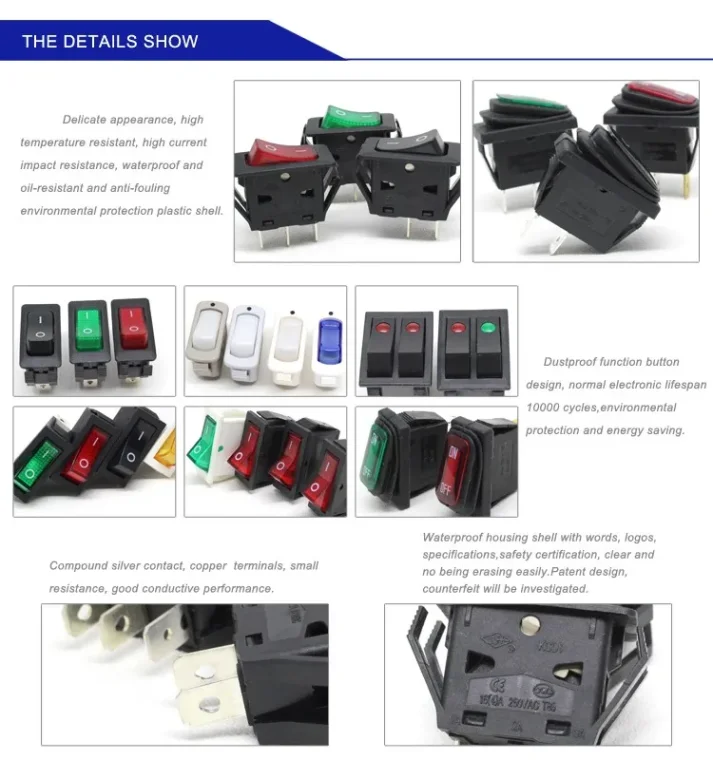

Why Choose Yongxing KCD1 Rocker Switch?
Our Yongxing KCD1 Rocker Switch stands out with its high durability, featuring a mechanical life of 50,000-100,000 cycles and an electronic life of 10,000 cycles. It's designed for cars, industrial, and electric equipment, offering reliable ON-OFF action with a 3-pin plug-in termination. The IP65 rating ensures protection against dust and water, making it suitable for various environments.
What Are the Key Specifications?
The switch has a maximum current of 16A and a maximum voltage of 250VAC, available in multiple colors. It meets international safety standards with certifications like CQC, CE, UL, ENEC, and CB. The contact resistance is ≤50mΩ, and the insulation resistance is ≥1000MΩ, ensuring safe and efficient operation.
Why Buy From Us?
As a direct factory supplier, we offer competitive pricing and flexible wholesale options. Our KCD1 Rocker Switch is known for its quality and reliability, backed by excellent customer service. Contact us today to learn more and place your order!
