Yongxing KCD1 Series Wholesale Waterproof Rocker Switch Supplier

500 - 1,999  pieces
$0.70

2,000 - 4,999  pieces
$0.65

>= 5,000  pieces
$0.60

0 reviews

Yongxing KCD1 Series Wholesale Waterproof Rocker Switch Supplier, High Quality, Factory Direct

Description

Discover our Yongxing KCD1 Series SPST 16A 250VAC illuminated waterproof rocker switches, ideal for cars, industrial equipment, and electric applications. As a factory direct supplier, we offer wholesale pricing on these high-quality switches. With a contact resistance of ≤50mΩ, insulation resistance of ≥1000MΩ, and dielectric strength of 1500V AC for 1 minute, our switches ensure reliable performance. Available in black housing with a green indicator, they feature a mechanical life of up to 100,000 cycles and an electronic life of 10,000 cycles. Certified by CQC, CE, UL, ENEC, and CB, these switches meet global safety standards. Choose Yongxing for durable, cost-effective solutions, backed by excellent customer service.

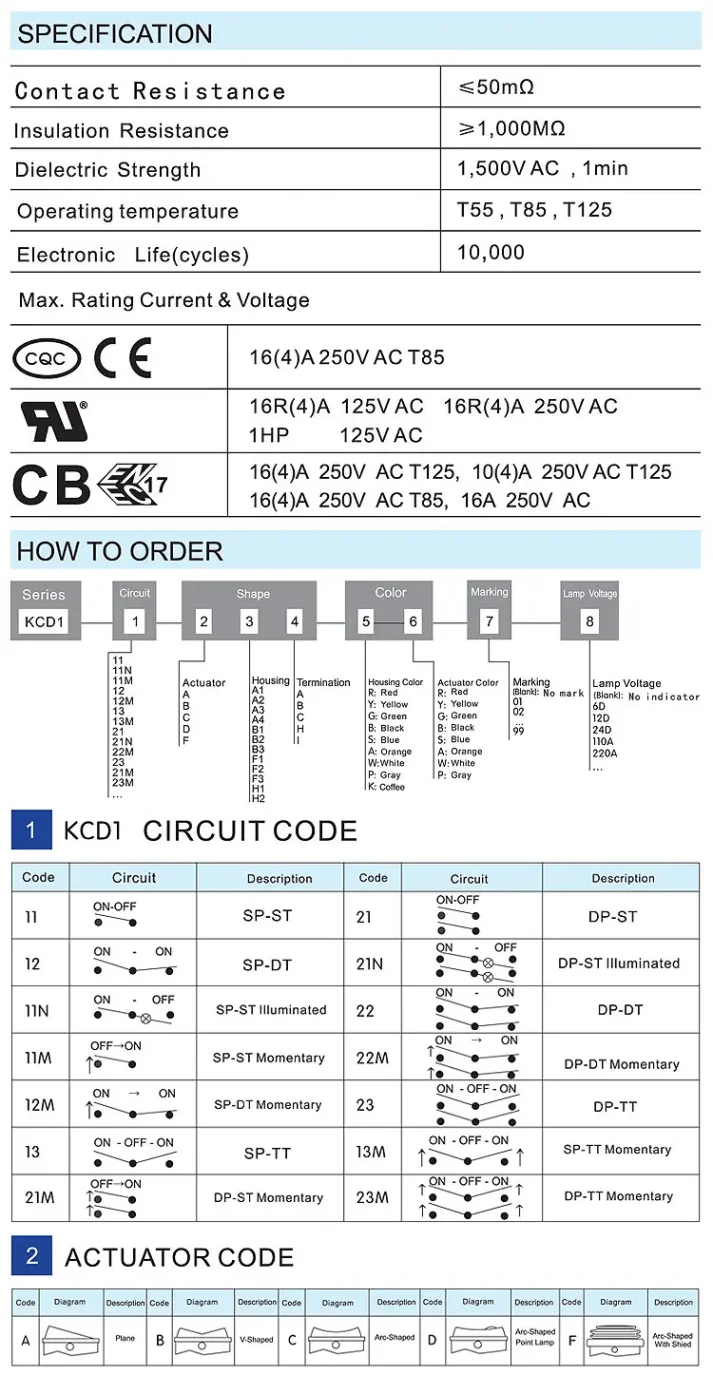

Contact Resistance ≤50mΩ
Insulation Resistance ≥1,000MΩ
Dielectric Resistance 1,500V AC , 1 min
Electronic life(cycles) 10,000 cycles
Mechanical life(cycles) 50,000 – 100,000 cycles
Certification

CQC , CE , UL , ENEC , CB

Max. Rating Current & Voltage (CQC , CE)

16(4)A 250V AC T85

Max. Rating Current & Voltage (UL)

16R(4)A 250V AC , 16R(4)A 125V AC

1HP 125V AC

Max. Rating Current & Voltage (CB , ENEC)

16(4)A 250V AC T125,10(4)A 250V AC T125

16(4)A 250V AC T85,16A 250V AC

High-quality electronic component image for e-commerceElectronic device part displayed in e-commerce product pageElectronic accessory shown in cross-border e-commerceElectronic product image for online shopping platformElectronic gadget displayed in e-commerce storeElectronic component for e-commerce product listing


Why Choose Our Yongxing KCD1 Series Rocker Switches?

Our Yongxing KCD1 Series rocker switches are designed for durability and reliability, making them ideal for cars, industrial equipment, and electric applications. With a waterproof rating of IP41 and IP65, they can withstand harsh environments. The illuminated feature ensures easy visibility in low-light conditions, enhancing user safety.

What Makes Our Switches Stand Out?

As a factory direct supplier, we offer competitive wholesale pricing without compromising on quality. Our switches undergo rigorous testing to ensure they meet global safety standards, with certifications including CQC, CE, UL, ENEC, and CB. The long mechanical and electronic life cycles mean fewer replacements, saving you time and money.

How Can Our Switches Benefit Your Business?

By choosing Yongxing, you're not just getting a product; you're getting a partner committed to your success. Our switches are designed to enhance the performance and reliability of your equipment, reducing downtime and maintenance costs. With excellent customer service and support, we're here to help you every step of the way.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

16A

Max. Voltage

250V AC

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

KCD1-22

Application

Cars, Industrial, electric equipment

Material

plastic

Pins

3

Whether the smart

NO

Mechanical Life

100,000 cycles

IP level

IP41, IP65

Switch Action

ON-OFF

Termination Type

Plug-in

Name

hot selling 6 pin 16a 250v kcd1 106 rocker switch

Housing Color

black

Circuit Description

SPST

Contact Resistance

≤50mΩ

Insulation Resistance

≥1000MΩ

Dielectric Strength

1500V AC , 1min

Electronic Life(cycles)

10,000 cycles

Operating Temperature

T55,T85,T125
