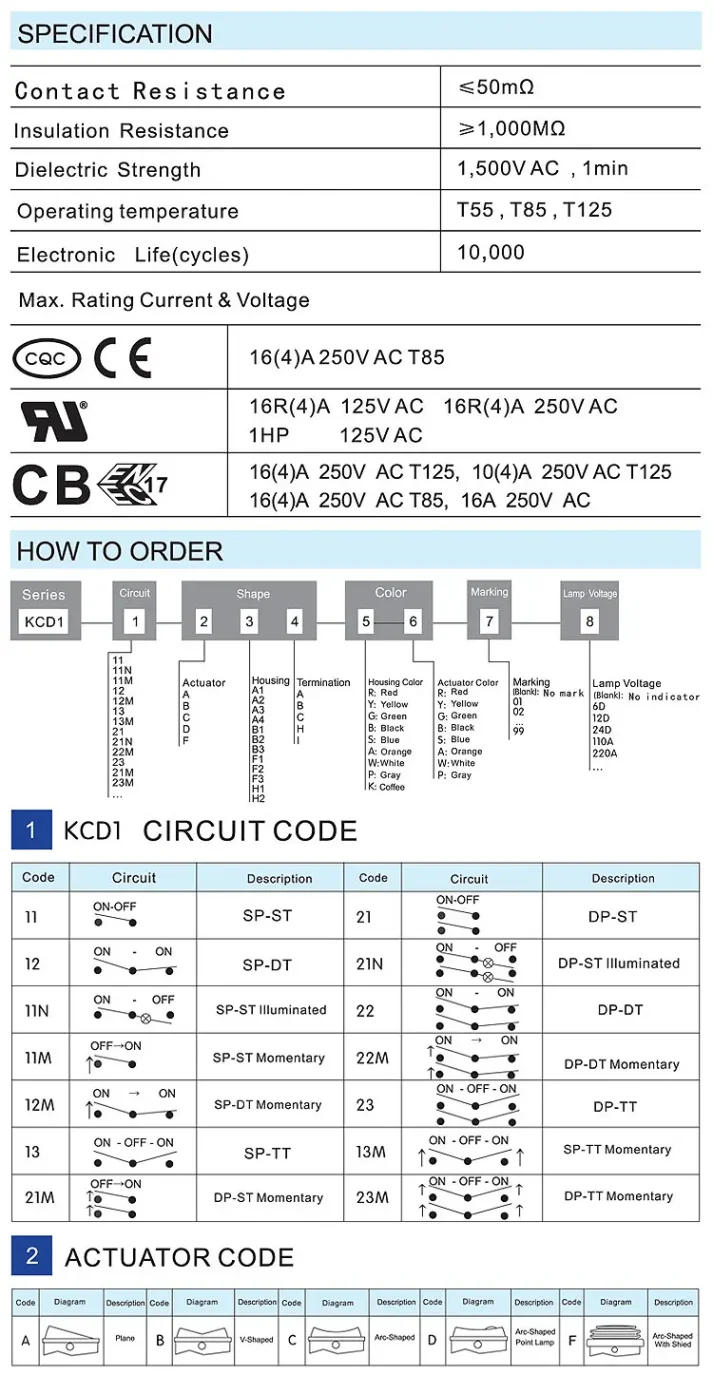

Description
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles |
| Mechanical life(cycles) | 50,000 – 100,000 cycles |
| Certification |
CQC , CE , UL , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
16R(4)A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
16(4)A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |

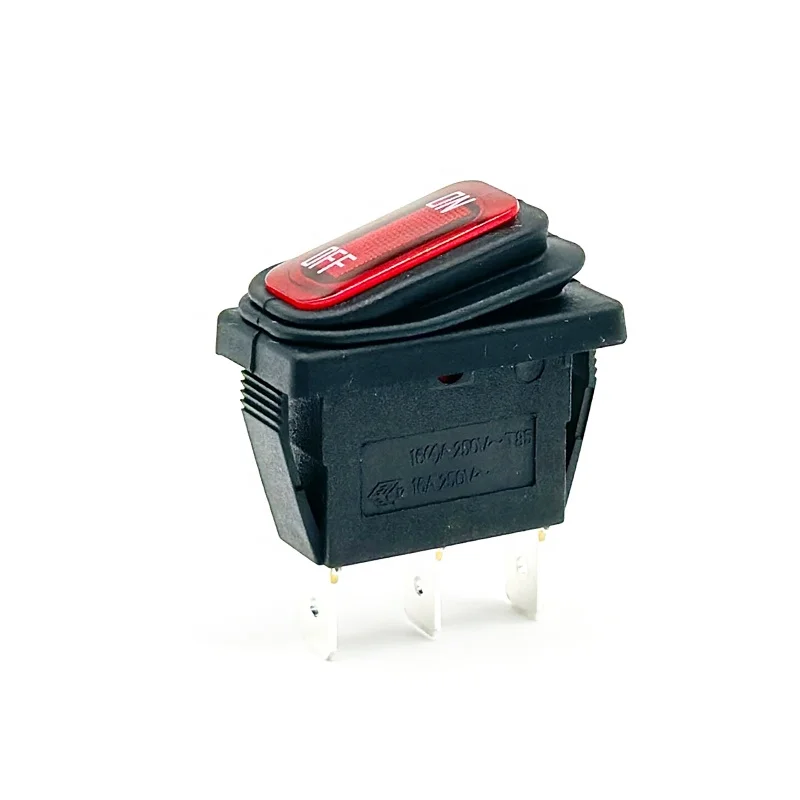

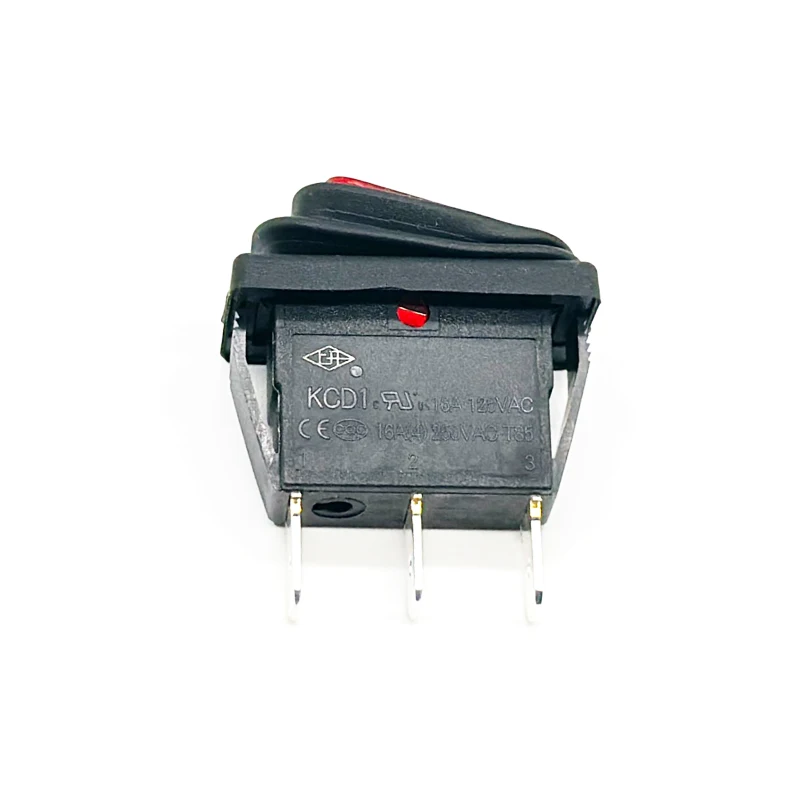

Why Choose Yongxing KCD1 Waterproof Rocker Switch?
The Yongxing KCD1 Waterproof Rocker Switch stands out due to its high-quality plastic construction, ensuring durability and a long lifespan. With a 16A current rating and 250VAC voltage, it's suitable for a wide range of applications, from cars to industrial machinery. The illuminated light feature adds both functionality and style, making it easy to locate and operate in low-light conditions.
What Makes Our Switch Unique?
Our switch offers a high mechanical life of 50,000 - 100,000 cycles and an electronic life of 10,000 cycles, ensuring reliable performance over time. It also meets multiple certifications, guaranteeing its quality and safety. Additionally, as a factory supplier, we offer competitive pricing and excellent after-sales service, making it a cost-effective choice for your needs.
What Are the Available Colors?
The Yongxing KCD1 Waterproof Rocker Switch comes in a variety of colors, including Red, Yellow, Green, Black, White, Blue, Gray, and Orange. This allows you to choose the color that best suits your application or personal preference, adding a touch of style to your devices or machinery.
