Description
|
Certification
|
CQC, CE, ENEC, UL
|
|
Whether the smart
|
NO
|
|
Place of Origin
|
China
|
|
Brand Name
|
yongxing
|
|
Model Number
|
KCD1
|
|
Max. Current
|
16A
|
|
Max. Voltage
|
250v
|
|
Product Name
|
12V Red Led Light Rocker Switch SPST On-Off T125 Boat Switch
|
|
Operating temperature
|
T55,T85,T125
|
|
Electrical life
|
10000
|
|
Material
|
Plastic
|
|
Dielectric Strength
|
1500V AC 1min
|
|
Contact Resistance
|
≤50mΩ
|
|
Panel Out Cut
|
28*11mm
|
|
Lamp Voltage
|
12V
|
|
Function
|
ON-OFF
|

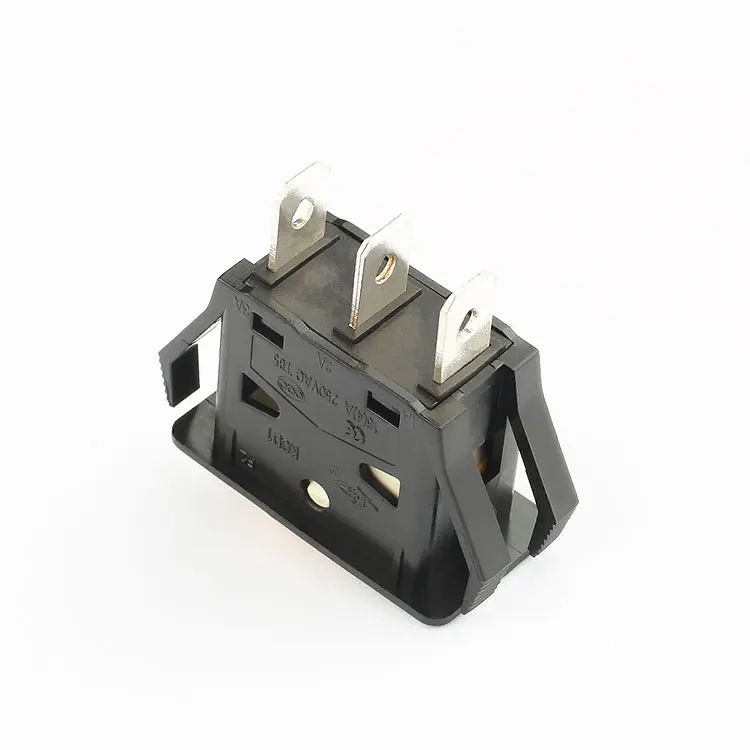

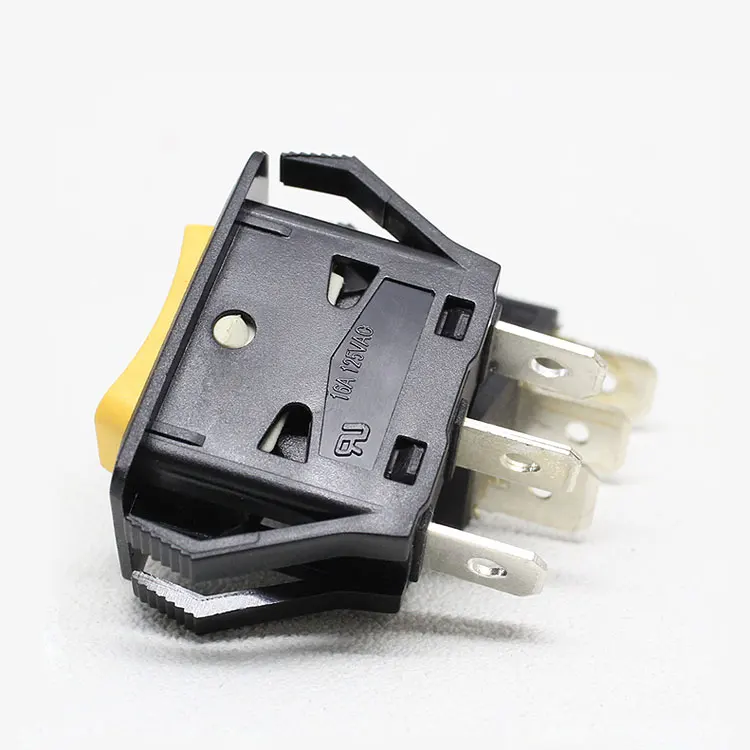

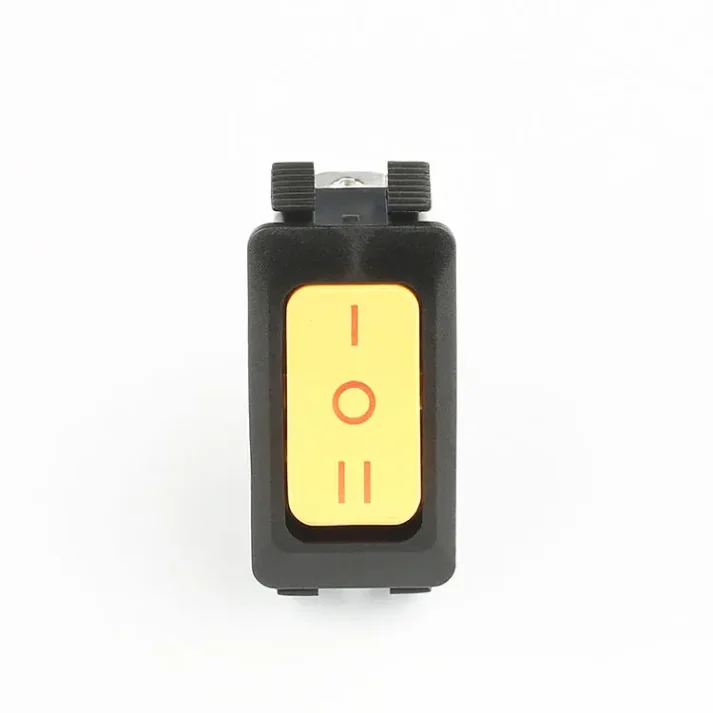

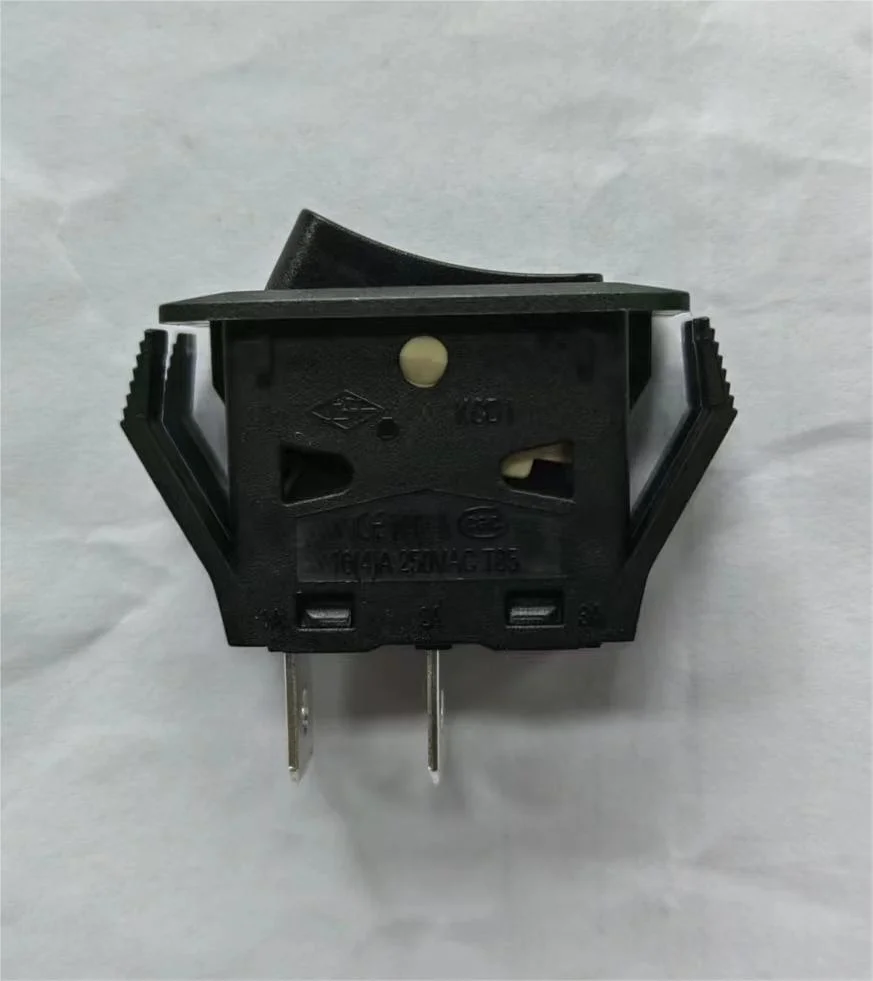

Why Choose Yongxing KCD1 Waterproof Rocker Switch?
The Yongxing KCD1 Waterproof Rocker Switch stands out for its durability and reliability. With an IP41/IP65 waterproof rating, it can withstand harsh conditions, making it ideal for both indoor and outdoor use. The plastic construction ensures it is lightweight yet sturdy, perfect for a wide range of electrical applications.
What Are the Key Features of This Switch?
This switch offers a maximum current of 16A and a maximum voltage of 250V, ensuring it can handle demanding tasks. It has an electrical life of 10,000 cycles and a mechanical life of 100,000 cycles, providing long-lasting performance. The contact resistance is ≤50mΩ, and it has a dielectric strength of 1500V AC for 1 minute, ensuring safety and reliability.
Where Can This Switch Be Used?
The Yongxing KCD1 Waterproof Rocker Switch is perfect for electric equipment, industrial use, home appliances, marine applications, and automotive use. Its versatility and durability make it a valuable addition to any project.
