Description
|
item
|
value
|
|
Certification
|
CQC CE ROHS
|
|
KCD1-12-AA1A-B-WModel Number
|
KCD1-11-CA1A-B-B-01
|
|
Max. Current
|
16A
|
|
Max. Voltage
|
250VAC
|
|
Mechanical Life
|
100,000 cycles
|
|
Electronic Life
|
10,000 cycles
|
|
Dielectric Strength
|
1,500VAC,1min
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1,000MΩ
|
|
Operating Temperature
|
T85
|
|
Circuit
|
SPDT ON-ON 3Pin
|
|
Panel cutout
|
28×11 mm
|
|
Terminal
|
6.3×0.8 mm standard
|
|
Color
|

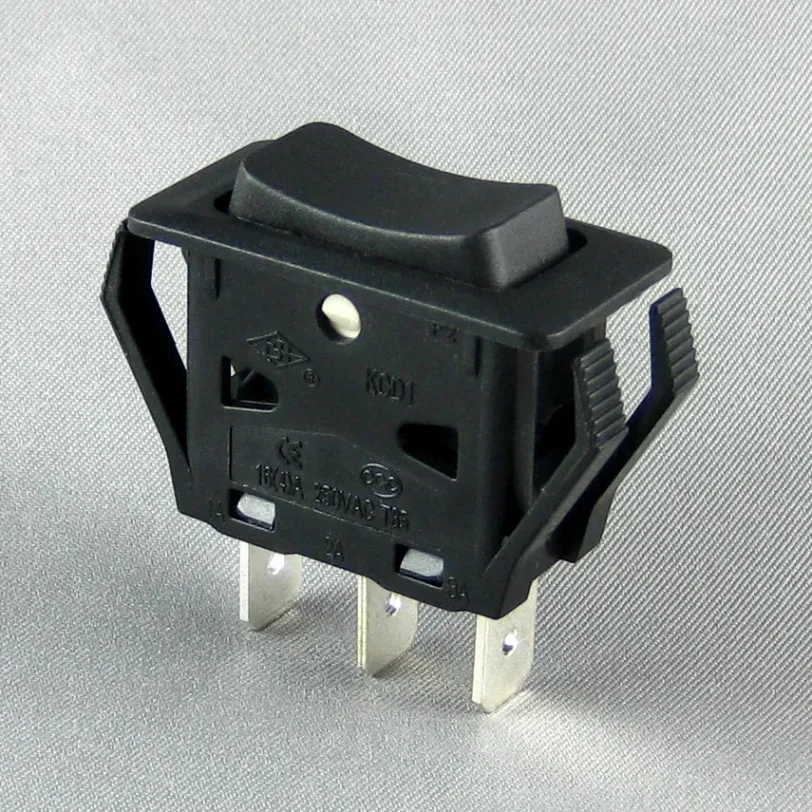

Black housing, white actuator
|
|
Marking
|
no marking
|
|
Material
|
PA66
|

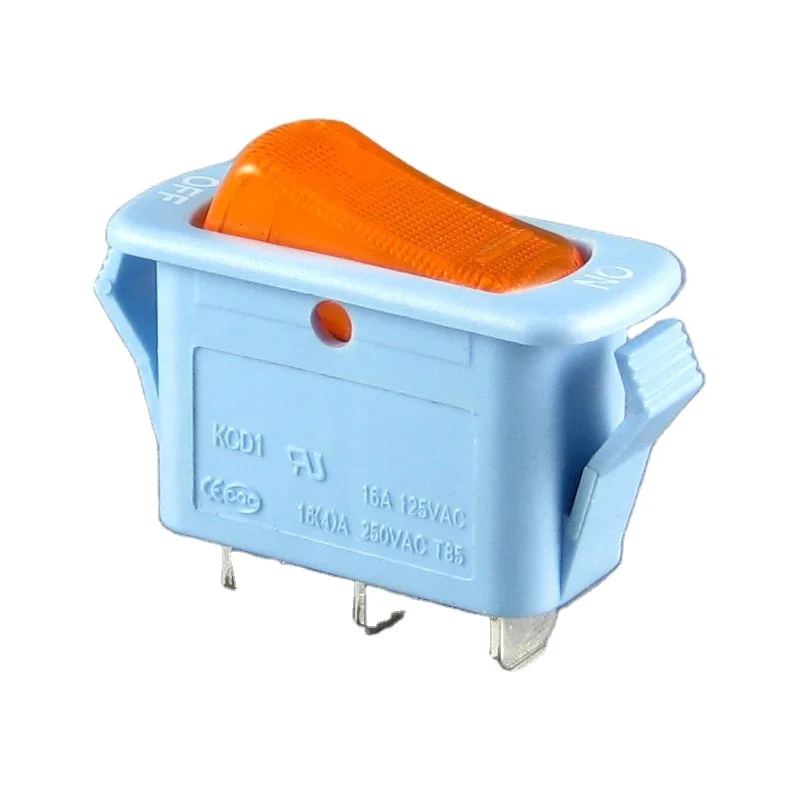

Why Choose Yongxing KCD1 Waterproof Rocker Switch?
The Yongxing KCD1 Waterproof Rocker Switch stands out for its exceptional durability and reliability, making it ideal for demanding industrial and automotive environments. With an IP65 rating, it offers superior waterproof protection, ensuring long-lasting performance even in harsh conditions. The switch's high current and voltage ratings, combined with its long mechanical and electronic life, make it a superior choice compared to many other switches on the market.
What Are the Key Features of the KCD1 Switch?

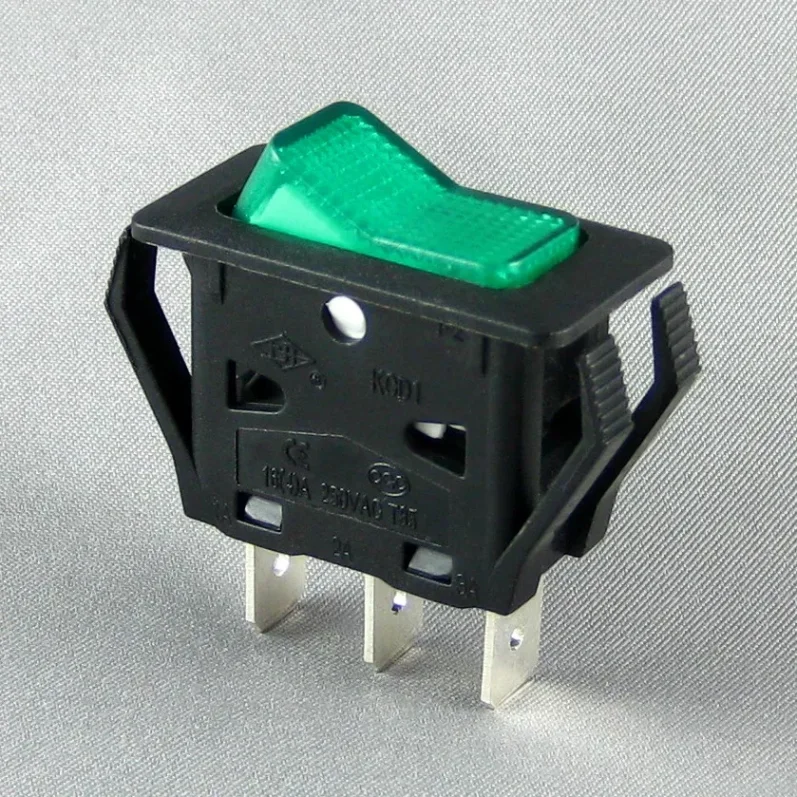

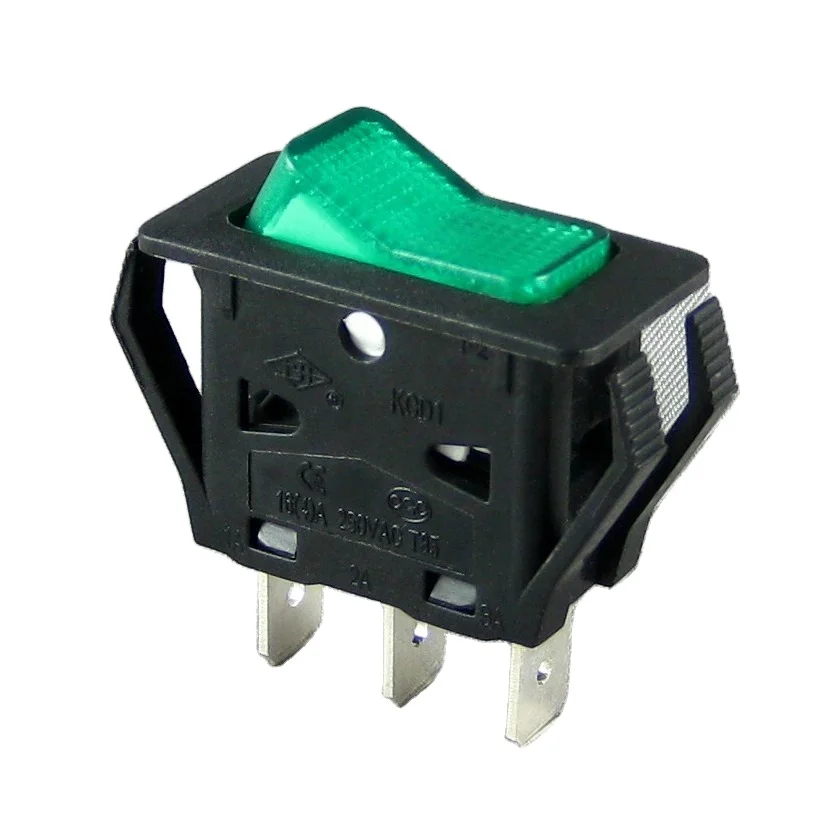

The KCD1 switch features a 3-pin configuration with an SPDT ON-ON circuit, providing versatile connectivity options. It's made from high-quality PA66 material, known for its strength and durability, and comes with a sleek black housing and white actuator (or optional green). The switch also offers custom marking options, allowing you to personalize it for your specific application.
How Does Yongxing Support Its Customers?
As a factory-direct supplier, Yongxing offers competitive wholesale pricing on the KCD1 switch, ensuring you get the best value for your money. We also provide quick shipping options and excellent customer service, helping you get the switch you need when you need it. With our commitment to quality and customer satisfaction, you can trust Yongxing for all your switch needs.
