Yongxing KCD2 T120 55 Rocker Switch – Wholesale Factory Supplier

200 - 9,999  pieces
$0.36

>= 10,000  pieces
$0.29

0 reviews

Wholesale Yongxing KCD2 Rocker Switch – Factory Supplier, High Quality, Durable, Wide Application.

Description

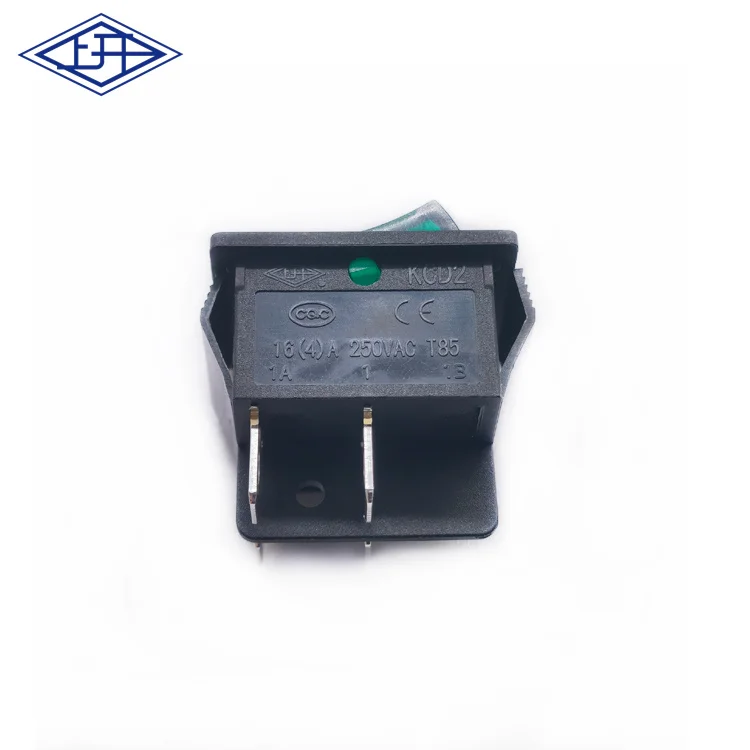

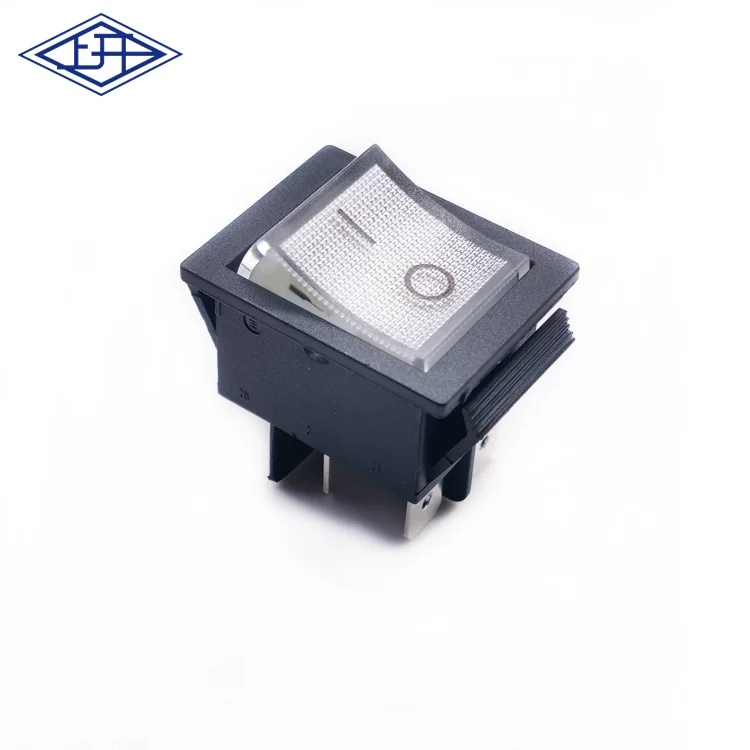

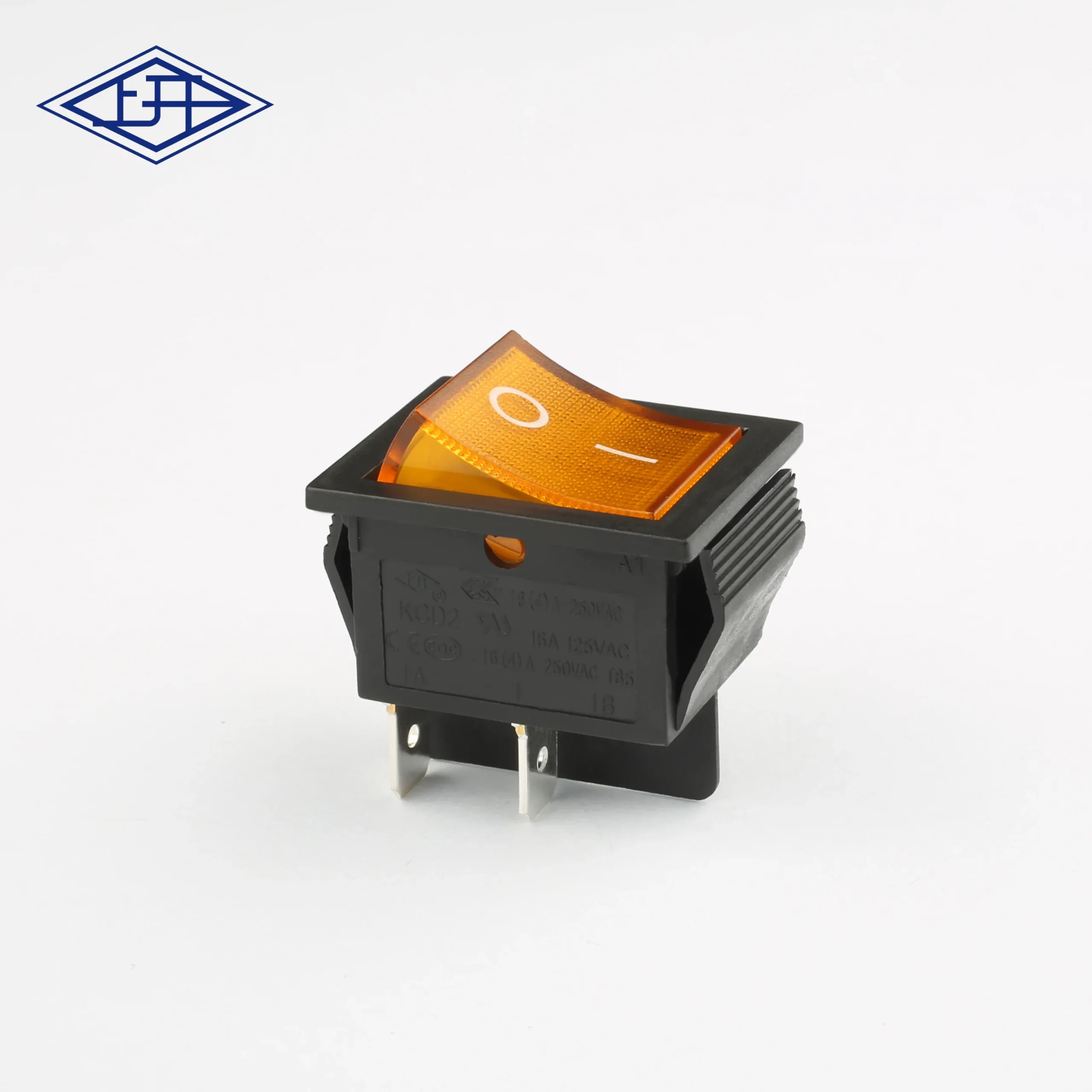

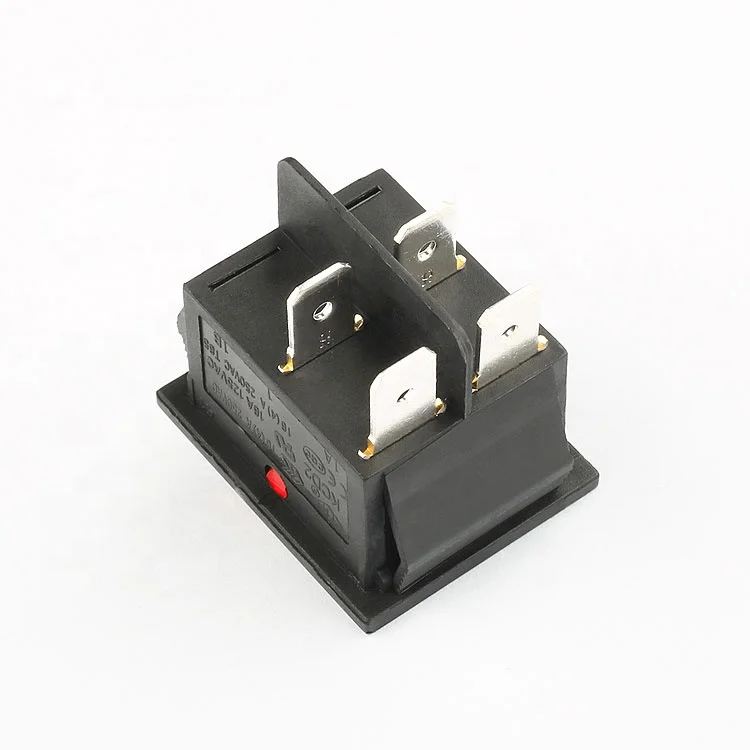

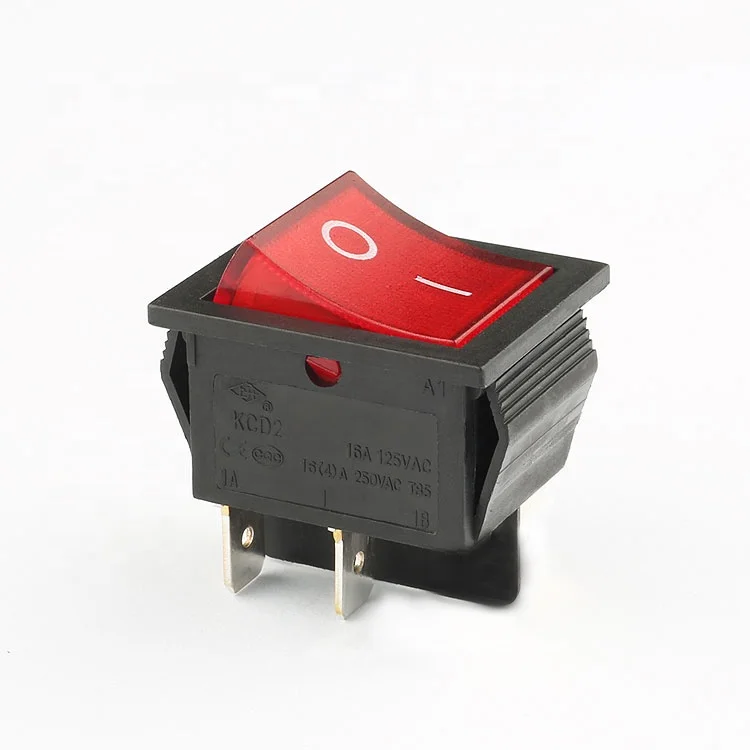

Introducing the Yongxing KCD2 T120 55 Rocker Switch, a high-quality, reliable switch designed for a wide range of applications. As a factory supplier, we offer wholesale pricing on this durable switch, which features a 16A, 250VAC rating and a DPST ON-OFF function with 4 pins. Available in white, yellow, green, and red, this switch is perfect for cars, industrial equipment, marine applications, buses, electric equipment, and off-road vehicles. Made from high-quality plastic, it offers excellent insulation resistance (≥1000MΩ) and contact resistance (≤50MΩ), ensuring long-lasting performance. With a mechanical life of 100,000 cycles and an electrical life of 10,000 cycles, it outperforms many competitors on the market. Plus, it’s IP40 rated for dust and water resistance. Our switch is CQC, CE, ENEC, and CB certified, guaranteeing safety and reliability. As a direct factory supplier, we provide competitive wholesale pricing and excellent customer service. Don’t miss out on this opportunity to stock up on a high-quality switch at a great price!
contact resistance
≤50MΩ
electronic life(cycles)
10000
insulation resistance
≥1000MΩ
operating temperature
T55 T85 T125
dielectric strength
1500V AC 1min
IP code
IP40

Electronic component image for cross-border e-commerce


Why Choose Our Rocker Switch?

Our Yongxing KCD2 T120 55 Rocker Switch stands out for its durability, reliability, and wide range of applications. With a 16A, 250VAC rating and a DPST ON-OFF function, it's perfect for cars, industrial equipment, marine applications, and more. Made from high-quality plastic, it offers excellent insulation and contact resistance, ensuring long-lasting performance.

What Are the Key Features?

Key features include a mechanical life of 100,000 cycles, an electrical life of 10,000 cycles, and an IP40 rating for dust and water resistance. It's also CQC, CE, ENEC, and CB certified, guaranteeing safety and reliability.

Why Buy from Us?

As a direct factory supplier, we offer competitive wholesale pricing and excellent customer service. Our switch is of high quality and designed to meet the needs of a wide range of applications. Don't miss out on this opportunity to stock up on a reliable switch at a great price!

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

16A

Max. Voltage

250VAC

Place of Origin

Shanghai, China

Brand Name

Yong Xing

Model Number

KCD2-21N-CA1A-B-R-01

Application

Cars, Industrial, MARINE, BUSES, electric equipment, off-road vehicles

Material

plastic

Pins

4P

Whether the smart

NO

Mechanical Life

100,000 cycles

IP level

IP40

Switch Action

ON-OFF

Termination Type

pin

Function

DPST ON-OFF

Dielectric Strength

1500V AC.1minute

Contact Resistance

50m Max

Insulation Resistance

100M

Electrical Life

10,000 cycles

IP Rating

IP40

Certification

CQC CE ENEC CB
