Description

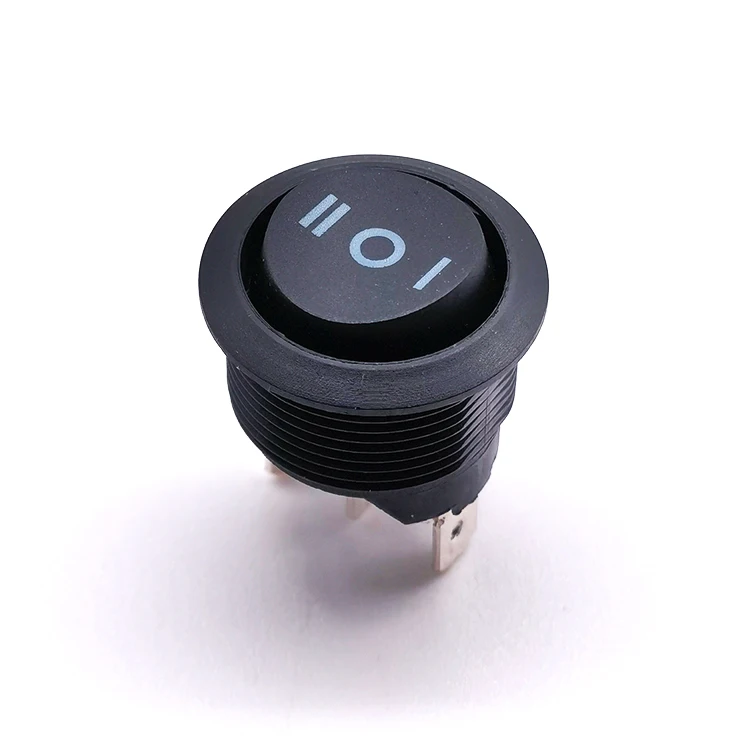

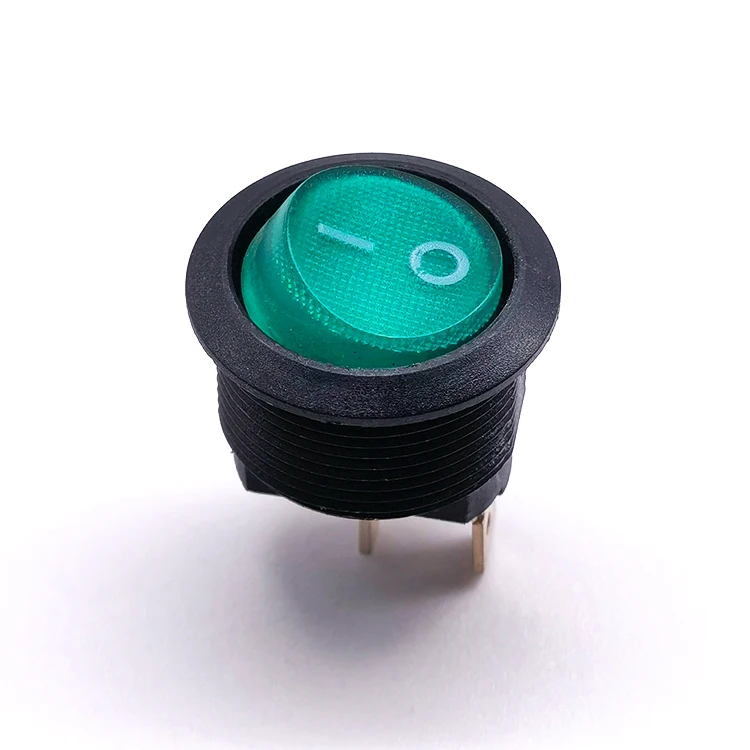

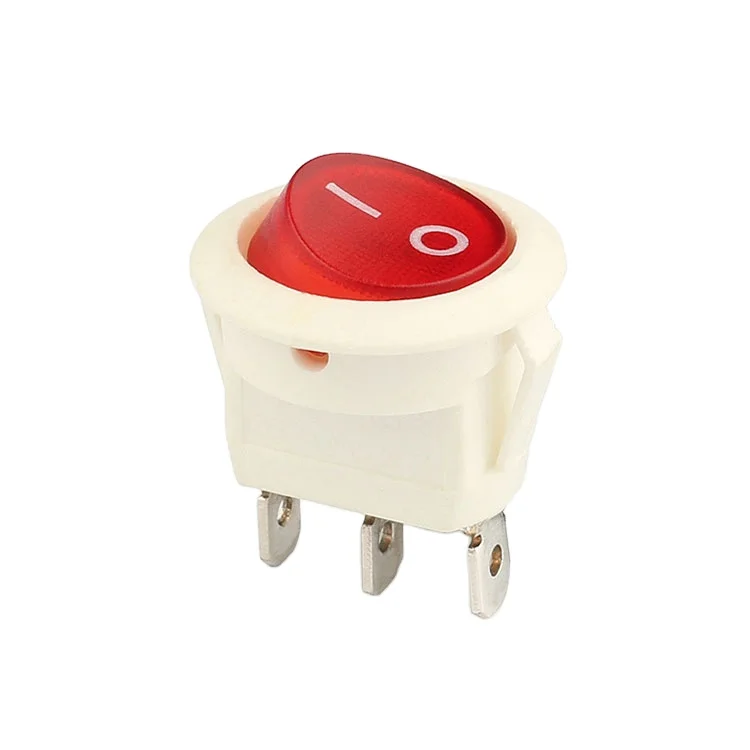

Yongxing KCD8 Rocker Switch – High Quality, Wholesale Direct
Introducing the Yongxing KCD8 Rocker Switch, a premium quality switch designed for industrial, automotive, and electric equipment applications. As a factory direct supplier and wholesaler, we offer unbeatable prices and exceptional quality.
Product Specifications
- Max. Current: 6A
- Max. Voltage: 250V AC
- Material: Durable plastic
- Pins: 2pin/3pin available
- Mechanical Life: 50,000-100,000 cycles
- IP Level: IP65, ensuring dust and water resistance
- Switch Action: ON-OFF
- Termination Type: Plug-in for easy installation
- Housing Color: Black rocker for a sleek look
- LED Color Options: Amber, Orangered, Blue, Green
- Contact Resistance: ≤50mΩ Max
- Insulation Resistance: ≥1000MΩ Min
- Electrical Life: 10,000 Times
- Color: Red, other colors available upon request
Product Advantages
Our KCD8 Rocker Switch stands out from the competition with its high mechanical life, IP65 rating, and a variety of LED color options. The durable plastic material ensures longevity and reliability, making it perfect for demanding applications.
After-Sales Service
We offer comprehensive after-sales service, including technical support and warranty coverage. As a factory direct supplier, we are committed to providing the best customer experience possible.
| Contact Resistance | ≤50mΩ rocker switches for electric fireplace |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles 4 pin on-off rocker switch |
| Operating Temperature | T55 rocker switch |
| Certification |
CQC , CE |
| Max. Rating Current & Voltage (CQC , CE) |
6A 250V AC |
Why Choose Yongxing KCD8 Rocker Switch?
The Yongxing KCD8 Rocker Switch is a top choice for industrial, automotive, and electric equipment applications due to its high mechanical life, IP65 rating, and durable plastic material. It offers reliable performance and longevity, making it a cost-effective solution for your switching needs.
What Makes Our Switch Stand Out?
Our KCD8 Rocker Switch stands out with its variety of LED color options, allowing you to customize the look of your equipment. Additionally, the plug-in termination type makes installation quick and easy, saving you time and effort.
Where Can You Use Our Switch?
The Yongxing KCD8 Rocker Switch is perfect for a wide range of applications, including industrial machinery, automotive systems, and electric equipment. Its durable construction and reliable performance make it a versatile choice for any switching need.
