Description

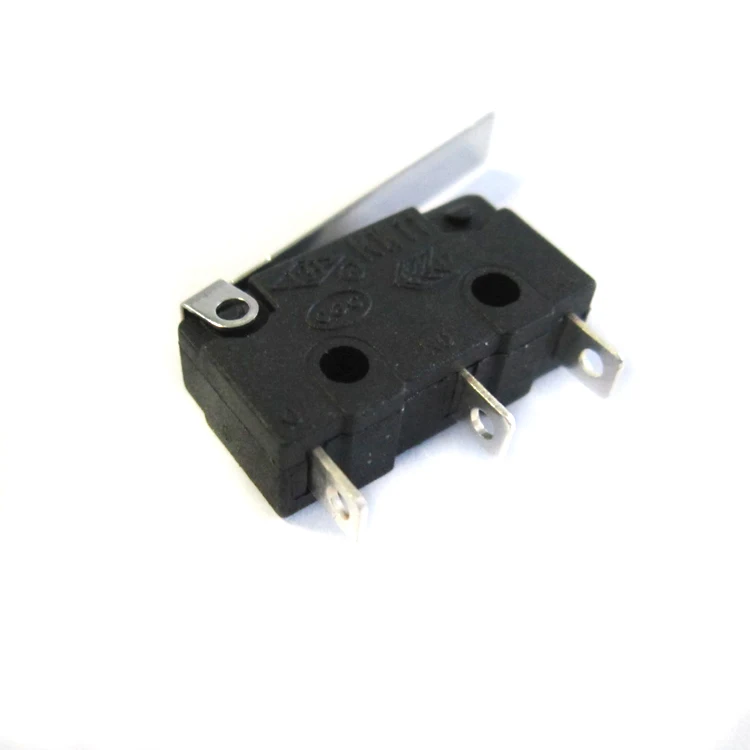

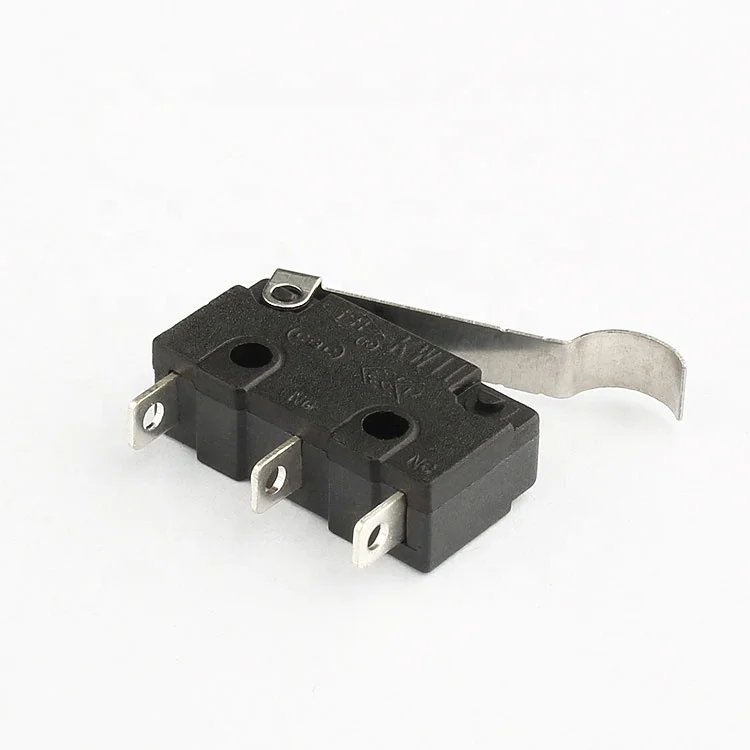

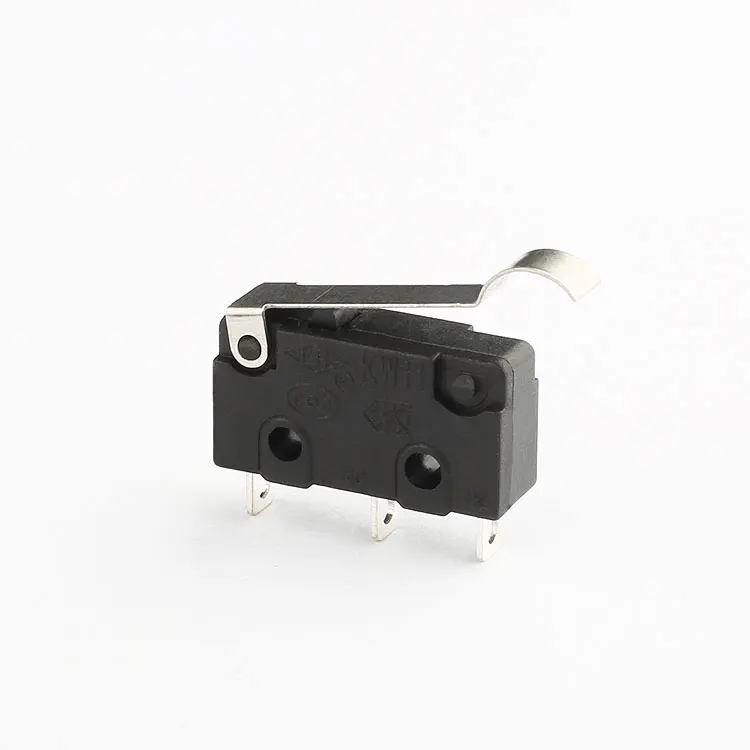

As a direct factory supplier, we offer the Yongxing KW Microswitch, a high-quality electronic component designed for reliability and durability. This microswitch features a lever actuator, making it ideal for applications requiring precise and responsive switching. With a maximum current rating of 5A and a voltage rating of 250VAC, it’s suitable for a wide range of electrical and electronic devices. The microswitch is UL, CE, and CQC certified, ensuring compliance with international safety standards. Its simulated roller lever design and 19mm lever length provide smooth operation and long life. The protection level of IP40 (IP65 available) makes it suitable for various environments. The contact resistance is ≤50mΩ, and the insulation resistance is ≥100MΩ, ensuring excellent electrical performance. The dielectric strength is 1500V, and the electrical life is 50,000 cycles, making it a reliable choice for demanding applications. Additionally, we offer wholesale pricing and bulk purchase options, making it cost-effective for businesses and individuals alike. Choose our Yongxing KW Microswitch for quality, performance, and value.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(shangkai) yongxing
|
|
Model Number
|
KW11-12-BAA-B
|
|
Max. Current
|
3A
|
|
Max. Voltage
|
250V
|
|
Operating Temperature
|
-25℃~+125℃
|
|
Protection Level
|
IP40 IP65
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Electrical life
|
50,000
|
|
Operating Temperature Range
|
-25℃~+125℃
|
|
Lever type
|

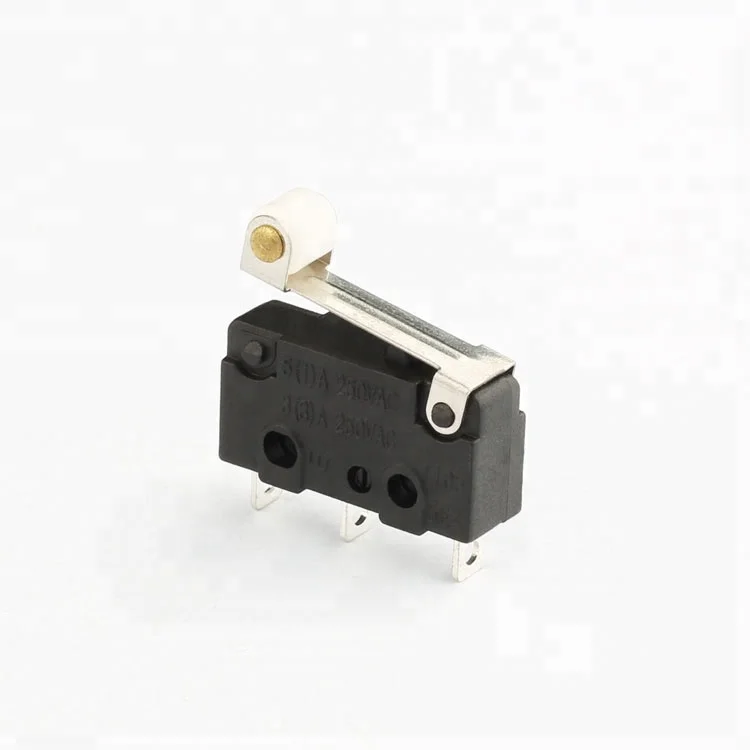

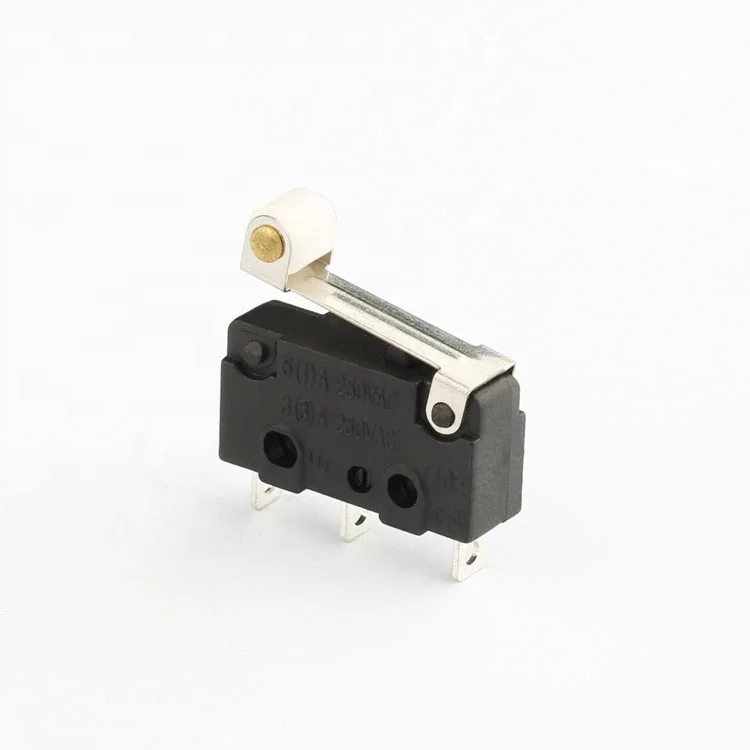

Simulate roll lever
|
|
Lever Length
|
19mm
|
|
Certification
|
CQC ENEC
|
|
Protection Degree
|
IP40, IP65 is also available
|
|
Color
|
Black
|
Key Features
The Yongxing KW Microswitch stands out with its high precision, long life, and UL, CE, CQC certifications, ensuring safety and reliability in various applications.
Why Choose Us?
As a factory supplier, we offer competitive wholesale pricing and bulk purchase options, making it a cost-effective choice for businesses. Our microswitch is designed for durability and performance, with a simulated roller lever and 19mm lever length for smooth operation.
Applications
This microswitch is suitable for a wide range of applications, including electrical devices, electronic controls, industrial machinery, and home appliances. Its high insulation resistance and dielectric strength make it ideal for demanding environments.
