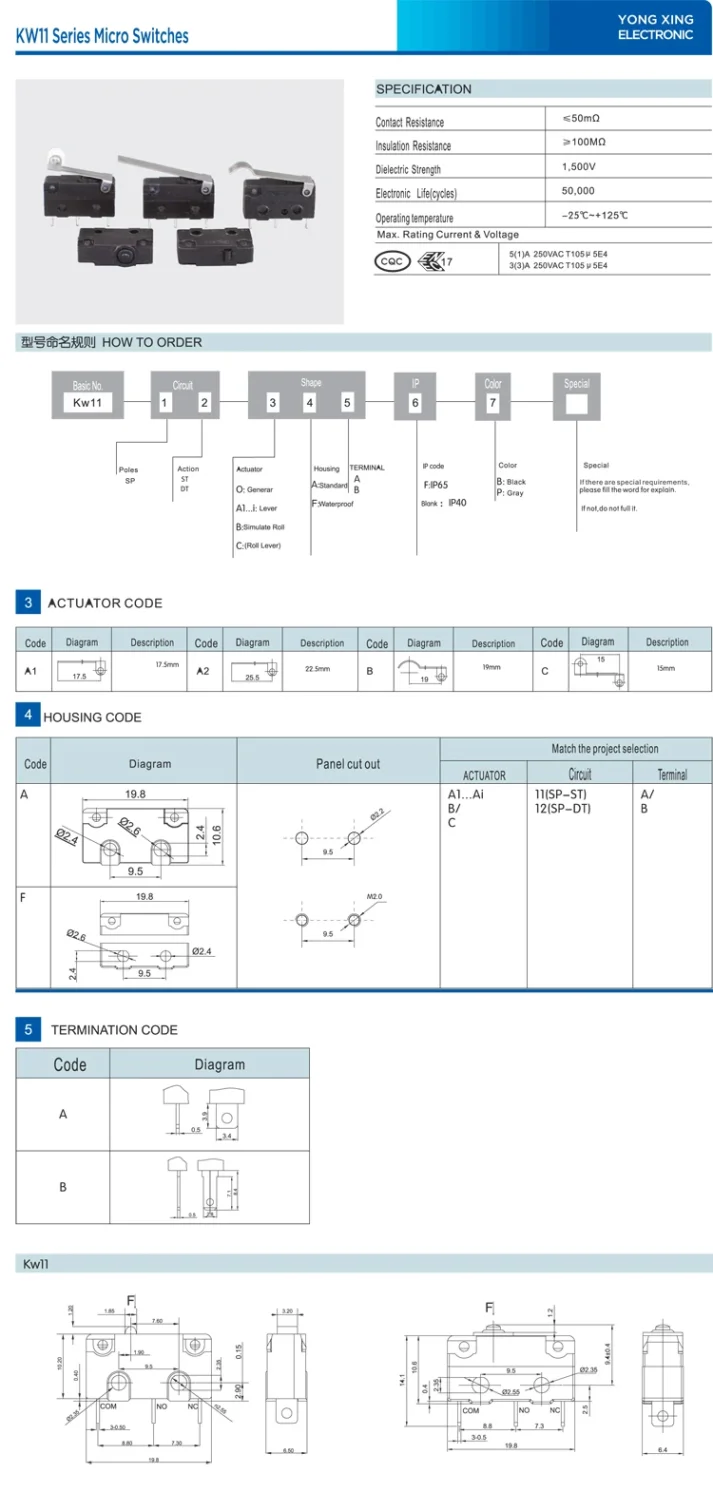

Description
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ |
| Dielectric Strength | 1,500V |
| Electronic Life | 50,000 cycles |
| Operating temperature | -25℃~+125℃ |
| Rating current&voltage | 5A/250VAC |
Why Choose Our Yongxing KW11 Micro Switch?
Our Yongxing KW11 Micro Switch stands out due to its high precision, high sensitivity, and long life. With a 5A/250VAC rating and a mechanical/electrical life of 50,000 cycles, it ensures reliable performance in various applications. As a factory direct supplier, we offer competitive prices and the ability to customize switches to meet your specific needs.
What Are the Key Features of Our Micro Switch?
Key features include a short lever design, SPDT circuit, and operation within a temperature range of -25℃ to +125℃. It also boasts excellent electrical properties, such as a contact resistance of ≤50mΩ, insulation resistance of ≥100mΩ, and dielectric strength of 1500V.
How Can We Assist You with Customization?
With our advanced production facilities and a team of over 60 senior engineers, we can customize switches to meet your unique requirements. Whether it's a specific size, color, or functionality, we're here to help. Contact us today to discuss your customization needs.
