Description
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ |
| Dielectric Strength | 1,500V |
| Electronic Life | 50,000 cycles |
| Operating temperature | -25℃~+125℃ |
| Rating current&voltage | 5A/250VAC |

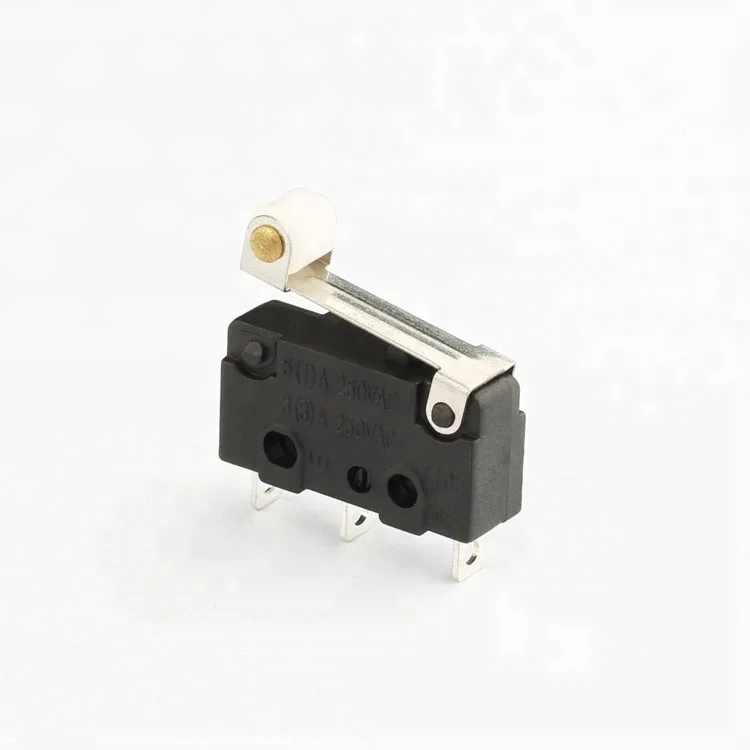

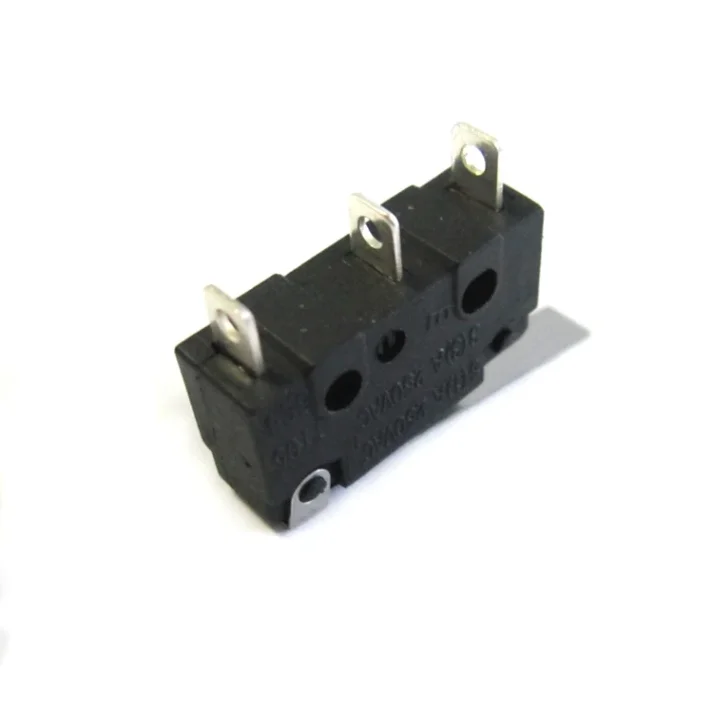

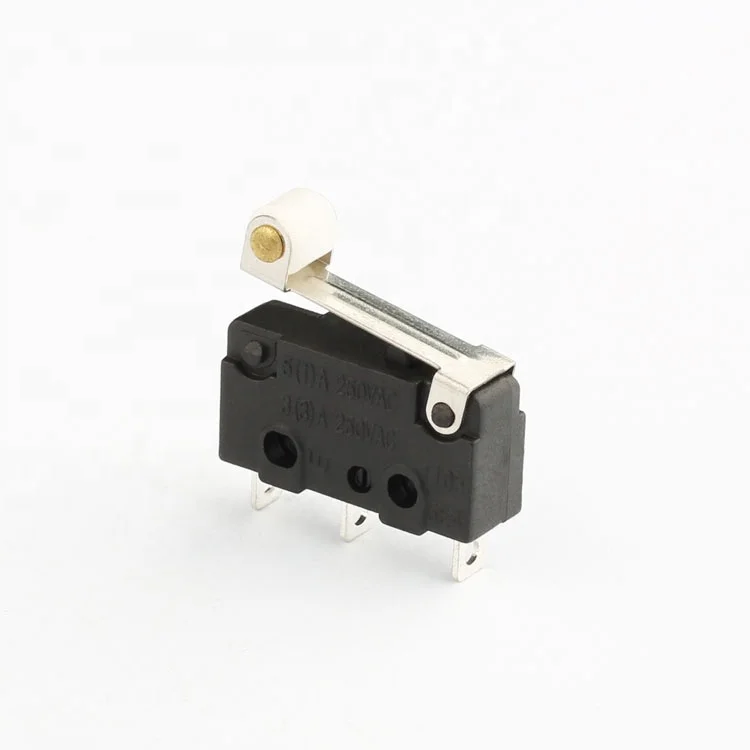

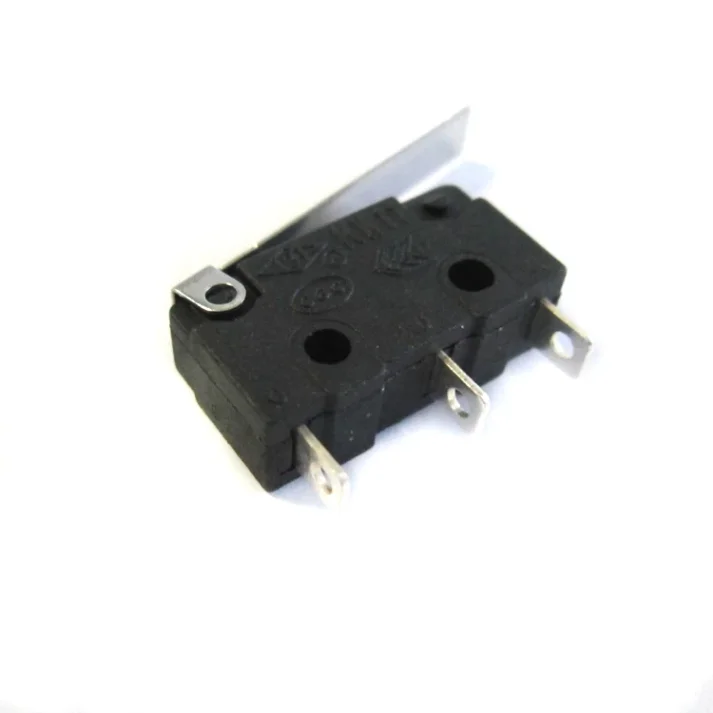

Why Choose Yongxing KW11 Micro Switch?
The Yongxing KW11 Micro Switch is designed for durability and reliability, making it ideal for home appliances and industrial applications. With a mechanical life of 50,000 cycles and an electrical life of 50,000 cycles, it ensures long-lasting performance. The switch's low contact resistance (≤50mΩ) and high insulation resistance (≥100MΩ) guarantee efficient and safe operation.
What Are the Key Features?
Our micro switch features a 5A/250VAC rating, an operating temperature range of -25°C to +125°C, and a dielectric strength of 1,500V. It comes with 3 pins and functions as SPDT 1NO 1NC, offering versatile connectivity. The switch is made of durable plastic with a sleek black finish and is available in black, white, or gray housing colors.
Why Buy From Us?
As a factory direct supplier, we offer competitive wholesale prices and customization options for bulk orders. With 60+ senior engineers and advanced equipment, we ensure top-notch quality and fast delivery. Contact us now to explore our wholesale options and experience factory-direct savings!
