Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(shangkai) yongxing
|
|
Model Number
|
KW11-12-A1AA-B
|
|
Max. Current
|
3A
|
|
Max. Voltage
|
250V
|
|
Operating Temperature
|
-25℃~+125℃
|
|
Protection Level
|
IP40 IP65
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Electrical life
|
50,000
|
|
Operating Temperature Range
|
-25℃~+125℃
|
|
Lever type
|
Short
|
|
Lever Length
|
17.5mm
|
|
Certification
|
CQC ENEC
|
|
Protection Degree
|
IP40, IP65 is also available
|
|
Color
|
Black
|

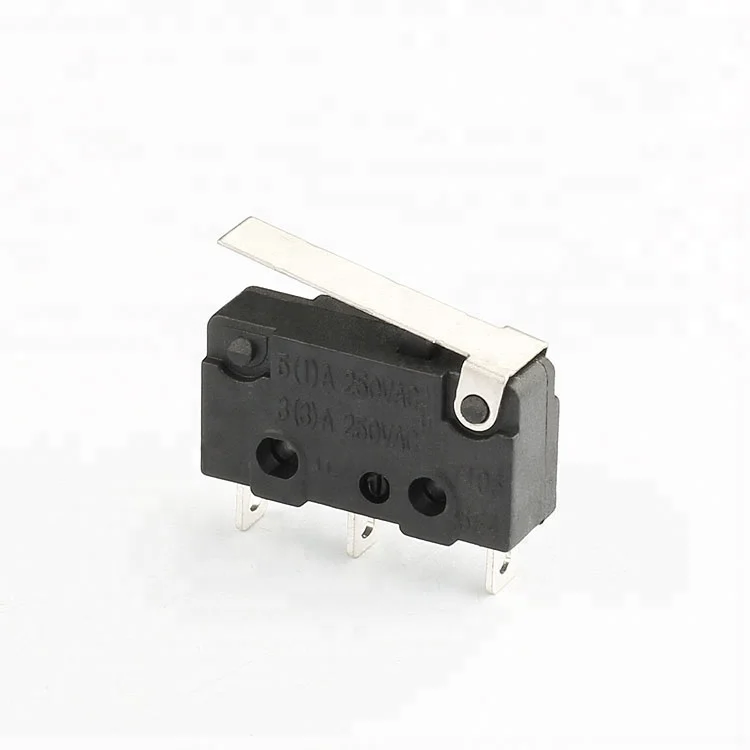

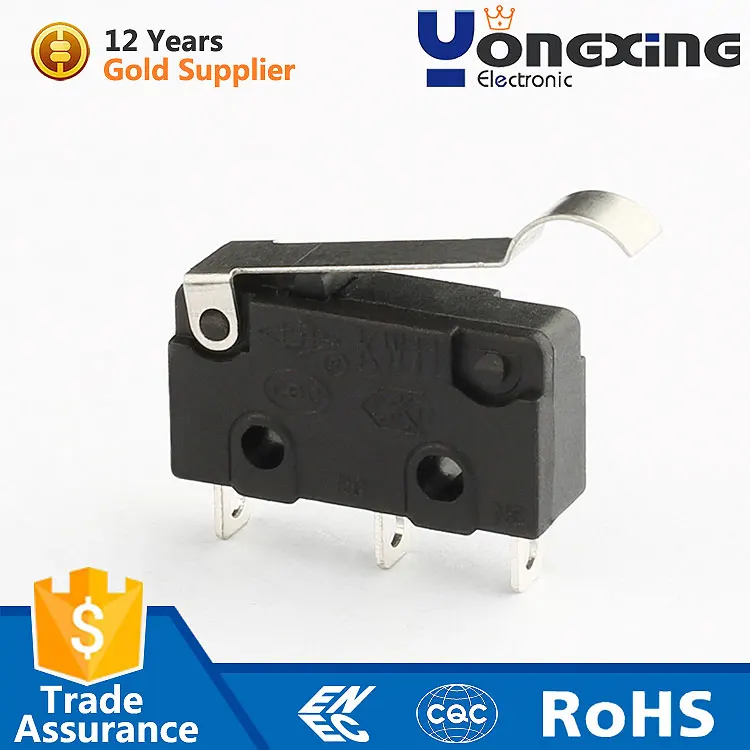

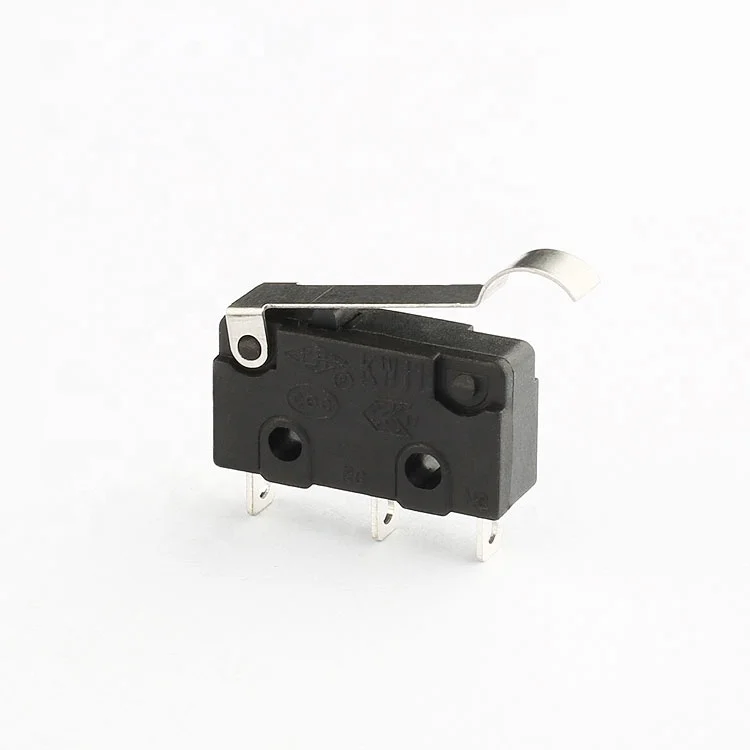

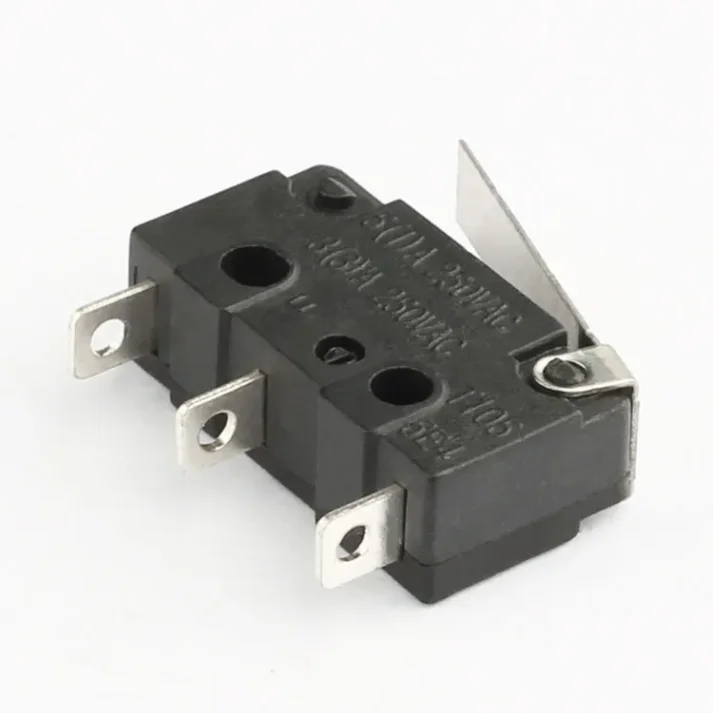

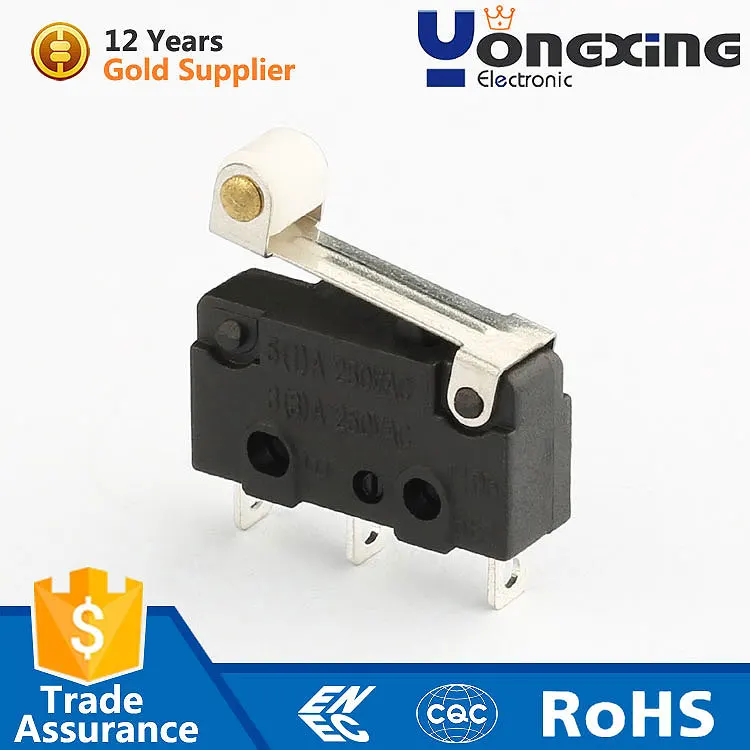

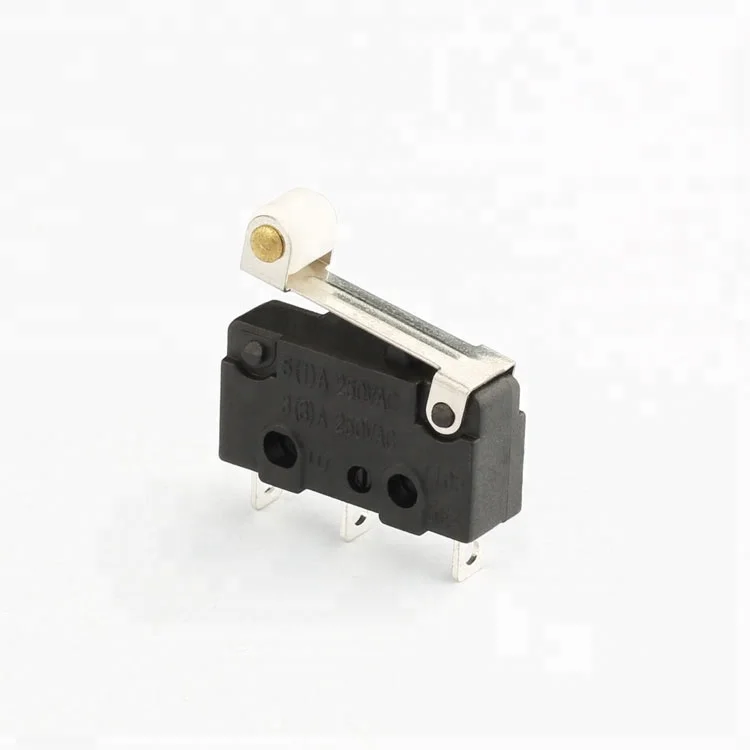

Why Choose Yongxing KW11 Microswitch?
The Yongxing KW11 Microswitch stands out for its high-quality construction, reliable performance, and competitive pricing. As a factory supplier, we offer wholesale rates, making it an affordable choice for businesses and individuals alike. Its 3A/5A 250V ratings, along with UL, CE, and CQC certifications, ensure safety and compliance with international standards.
What Are the Key Features?
Key features include an IP40 protection level (IP65 available), a short 17.5mm lever, SPDT 3-pin configuration, and a wide operating temperature range of -25℃ to +125℃. With an electrical life of 50,000 cycles, it offers long-lasting durability and reliability. Additionally, its low contact resistance (≤50mΩ) and high insulation resistance (≥100MΩ) contribute to its superior performance.
Where Can It Be Used?
This microswitch is ideal for a variety of applications, including home appliances, kids scooters, electric power systems, and households. Its versatility and compatibility make it a valuable component in numerous electronic devices.
