Description
Our KW11 Microswitch boasts a contact resistance of ≤50mΩ, insulation resistance of ≥100MΩ, and a dielectric strength of 1,500V. It has an impressive electrical life of 50,000 cycles and operates efficiently within a temperature range of -25°C to +125°C. The switch is available in SPST, DPST, SPDT, and DPDT circuits, with 3-pin configurations and a choice of black, white, or gray housing colors.
What sets us apart is our commitment to quality and customer satisfaction. We have an independent plant, injection molding workshop, and advanced experimental equipment. With over 60 senior engineers and 5S management implemented in all workshops, we ensure that every product meets the highest standards. Contact us today to learn more about our wholesale options and how we can tailor the switch to your requirements.
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ |
| Dielectric Strength | 1,500V |
| Electronic Life | 50,000 cycles |
| Operating temperature | -25℃~+125℃ |
| Rating current&voltage | 5A/250VAC |
Why Choose Yongxing KW11 Microswitch?
The Yongxing KW11 Microswitch stands out due to its high-quality construction, waterproof capabilities, and customizable options. With a 5A/250VAC rating and an impressive electrical life of 50,000 cycles, it's built to last and perform reliably in various applications.
What Are the Key Features?

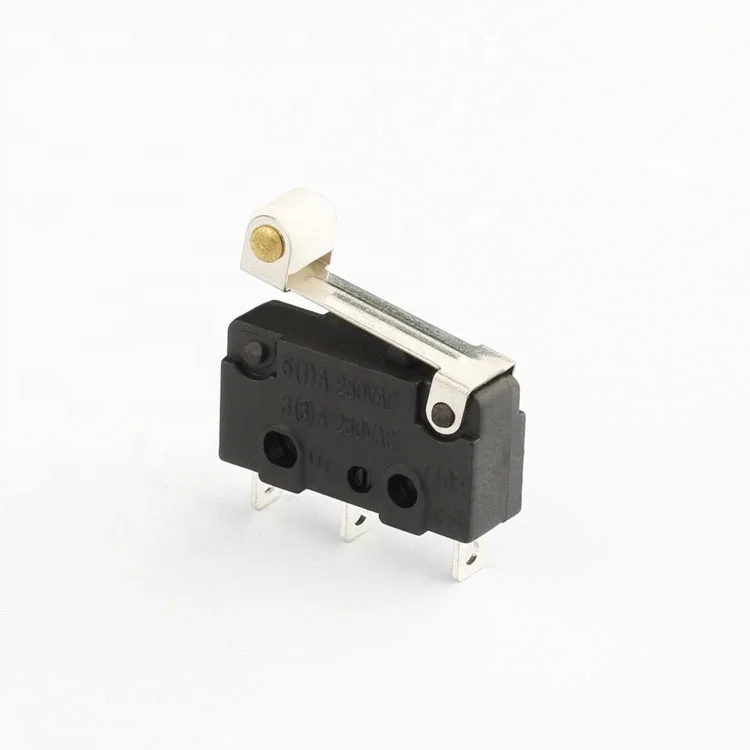

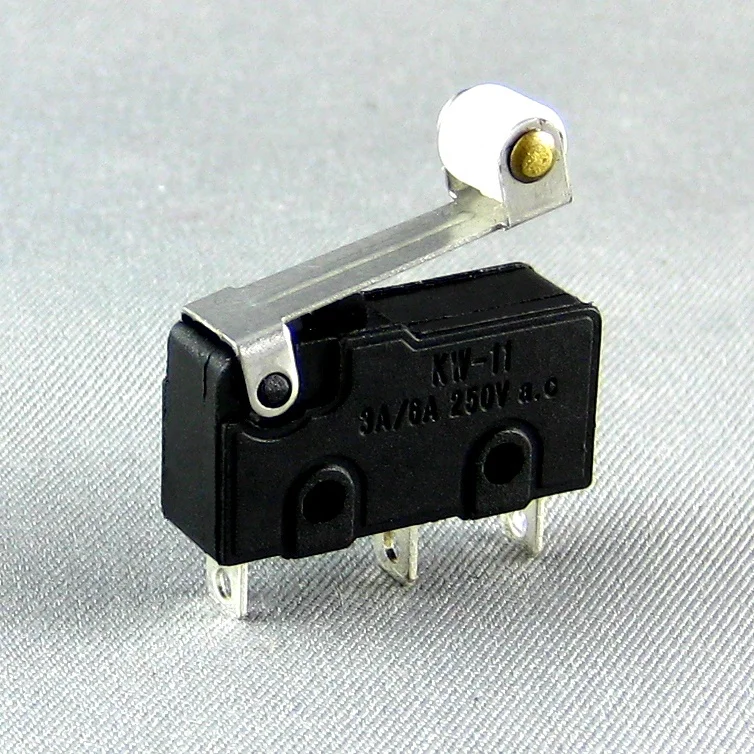

Key features include a roller lever design, waterproof protection (IP65/IP40), and a choice of circuits (SPST, DPST, SPDT, DPDT). It also offers a wide operating temperature range (-25°C to +125°C) and comes in black, white, or gray housing colors.
How Can We Help You?
As a factory and direct supplier, we offer wholesale pricing and can customize the switch to meet your specific requirements. Our team of senior engineers and advanced facilities ensure that every product meets the highest standards of quality and performance.
