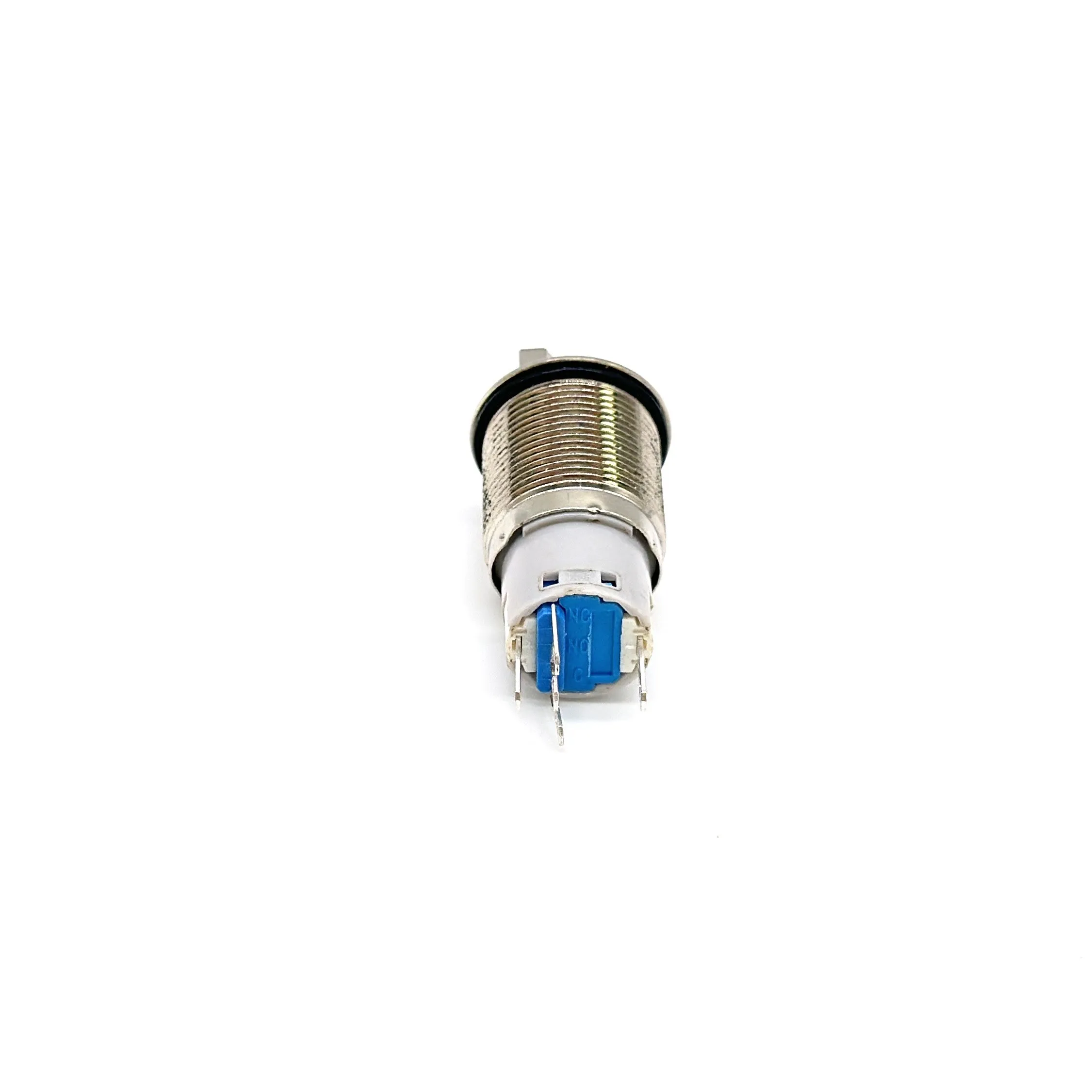

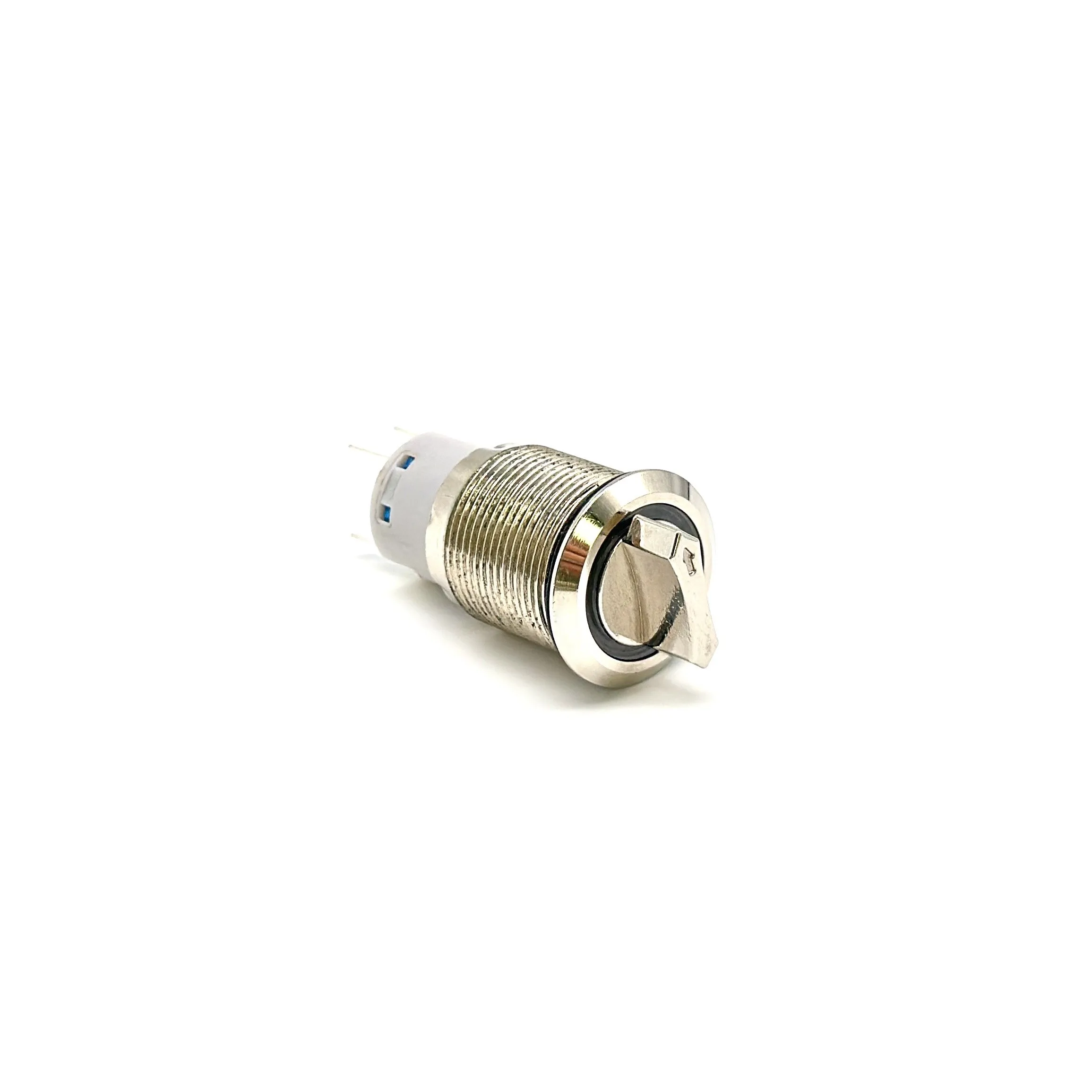

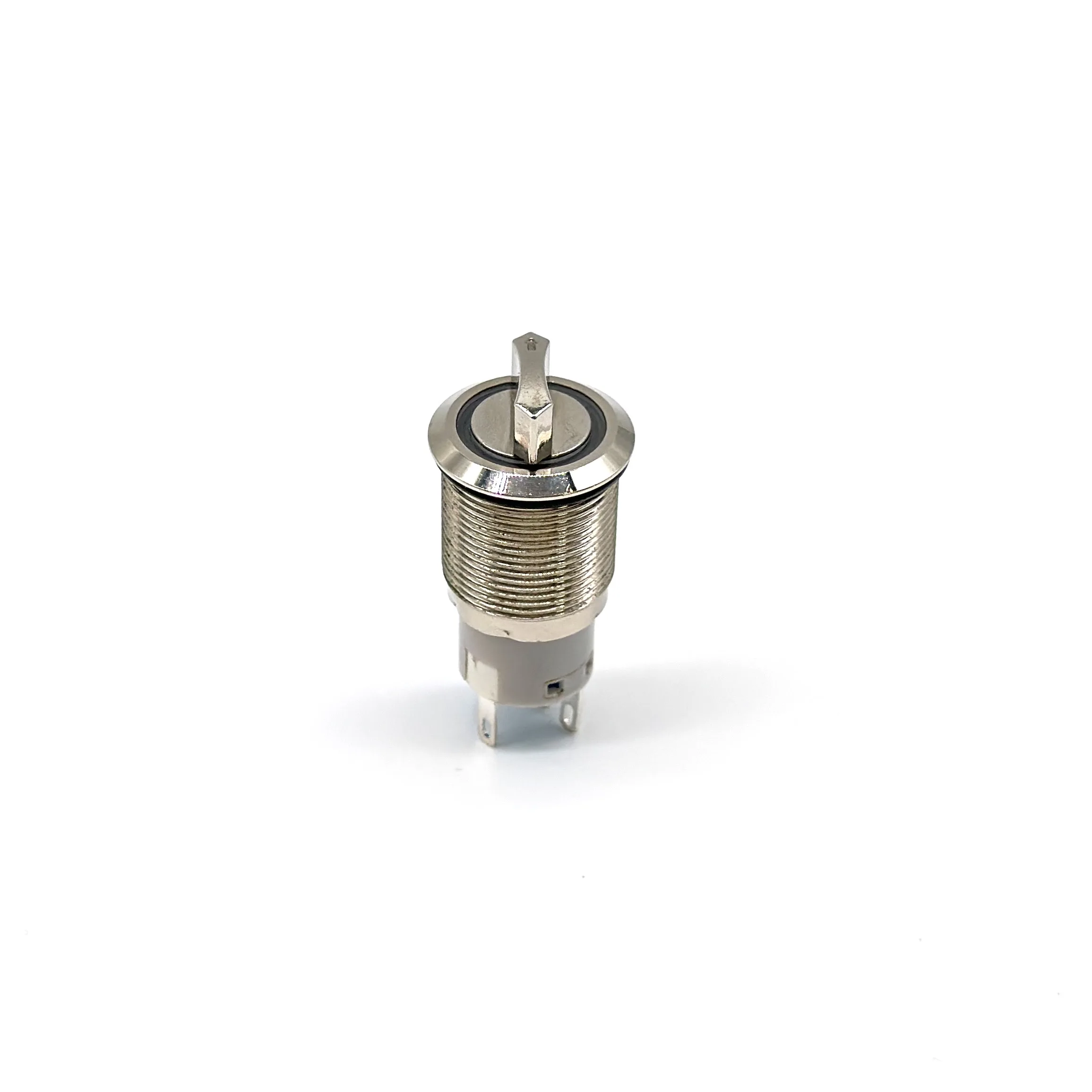

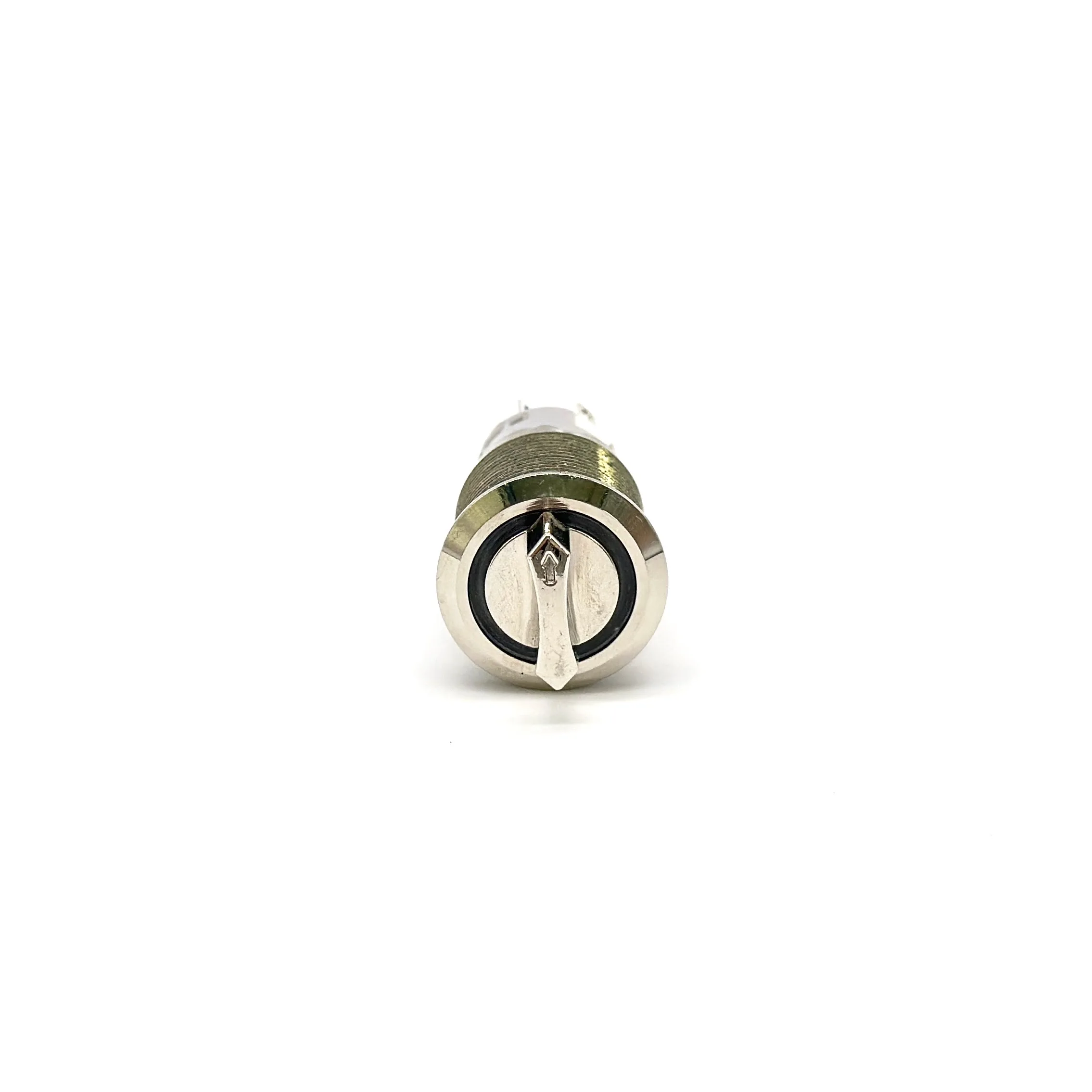

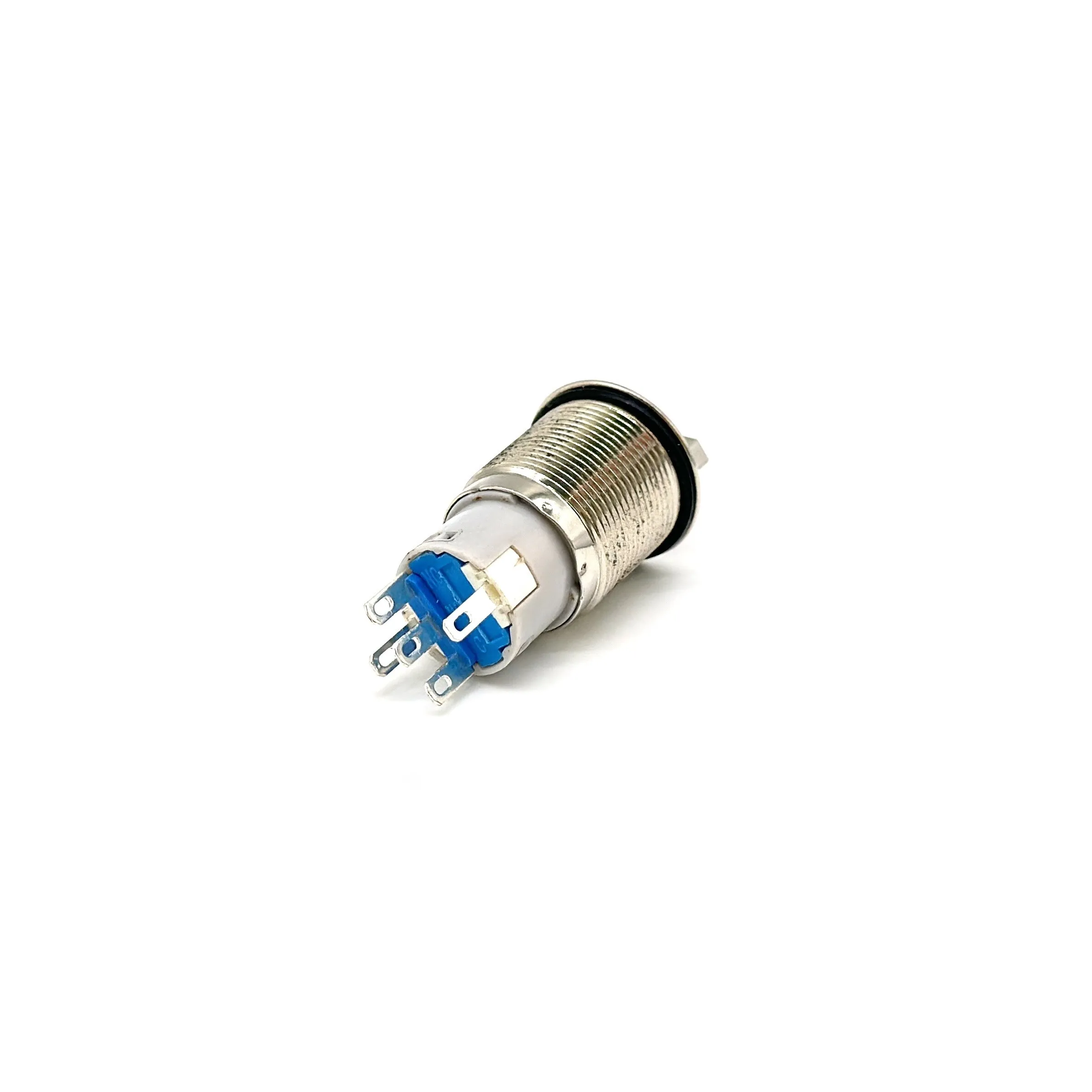

Yongxing MA19 19mm Rotary Switch | Wholesale Supplier | IP65 Waterproof

500 - 1,999  pieces
$4.90

2,000 - 4,999  pieces
$4.87

>= 5,000  pieces
$4.81

0 reviews

Yongxing MA19 Rotary Switch | Wholesale Supplier | IP65 Waterproof | Durable & Reliable

Description

Introducing the Yongxing MA19 19mm Rotary Switch, a high-quality metal switch designed for instrument, industrial control, and electric equipment applications. As a factory-direct supplier, we offer wholesale pricing on this durable switch, which boasts a 3A/250V rating and IP65 waterproof protection. The MA19 features a 180° rotation range, pin terminals, and a mechanical life of 50,000 times, ensuring long-lasting performance. Available in red, yellow, green, blue, and white with light, and in flat, high, or ball head styles, this switch meets diverse customer needs. With stainless steel and brass shell materials, it offers excellent durability and corrosion resistance. The switch also features low contact resistance (≤50mΩ), high insulation resistance (≥100MΩ), and withstands 1500VAC for 1 minute. Certified by CQC and CE, it guarantees safety and reliability. Operating in temperatures from -25°C to 55°C, it’s suitable for various environments. Choose Yongxing MA19 for a reliable, cost-effective rotary switch solution.

Electronic component for cross-border e-commerce


Why Choose Yongxing MA19 Rotary Switch?

The Yongxing MA19 Rotary Switch stands out with its IP65 waterproof rating, ensuring reliable performance in damp environments. Its 19mm size and 3A/250V rating make it suitable for a wide range of applications, from instruments to industrial controls. The switch's durable stainless steel and brass construction, along with a 50,000-time mechanical life, guarantee longevity and reduce maintenance costs.

What Makes It Different?

Unlike competitors, the MA19 offers a variety of color and head type options, allowing for customization to fit specific design needs. Its low contact resistance and high insulation resistance ensure efficient and safe operation. Additionally, as a factory-direct supplier, we can offer competitive wholesale pricing, making it a cost-effective choice for bulk purchases.

How Does It Benefit You?

By choosing the Yongxing MA19 Rotary Switch, you're investing in a reliable, high-quality product that meets international safety standards (CQC, CE certified). Its wide operating temperature range and robust construction make it suitable for diverse industrial environments. Plus, our wholesale supplier status means you can enjoy significant savings on large orders, enhancing your project's profitability.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Whether the smart

NO

Max. Current

3A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

MA19

Application

Instrument, Industrial Control, electric equipment

Material

Metal

Terminal Type

Pin terminal

Rotation Range

180°

Mechanical Life

50000 times

IP level

IP65

Contact Resistance

≤50mΩ

Insulation Resistance

≥100MQ

Withstand voltage

1500VAC 50Hz 1min

Electrical life

25000 Times

Mechanical life

50000 Times

Working ambient temperature

-25℃~55℃

Shell material

stainless steel, brass

Color with light

red/yellow/green/blue/white

Head type

flat/high/ball head

Certification

CQC, CE
