Description
Our terminal block is crafted from durable plastic with a matte lamination finish, ensuring both aesthetic appeal and longevity. The brass, tin-plated contacts offer excellent conductivity and resistance to corrosion, while the green color provides a clear visual indicator.
One of the standout features of our terminal block is its wide operating temperature range of -40℃ to +150℃, making it ideal for use in extreme conditions. Additionally, it has a low contact resistance of 20mΩ, high insulation resistance of >5000MΩ DC500V, and can withstand a voltage of AC2000V/Min, ensuring safety and reliability.
As a factory direct supplier, we offer wholesale pricing and excellent customer service. Our terminal blocks are available in 2 to 24 poles, providing flexibility for various applications. Plus, they come with CQC certification, guaranteeing compliance with industry standards.
Choose our Yongxing Pluggable Terminal Block for its superior quality, durability, and competitive pricing. We’re your trusted supplier for all your electrical component needs.
|

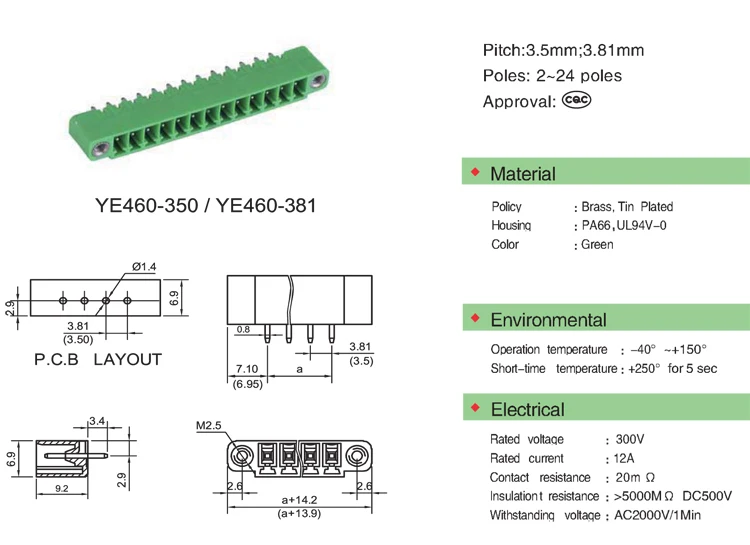

item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai), yongxing
|
|
Model Number
|
YE460-350-13P
|
|
Type
|
Plug Terminal （Socket）
|
|
Rated voltage
|
300V
|
|
Rated Current
|
12A
|
|
Contact Resistance
|
20mΩ
|
|
Insulation Resistance
|
>5000MΩ DC500V
|
|
Withstand Voltage
|
AC2000V/Min
|
|
Operating Temperature
|
-40℃~+150℃
|
|
Contact
|
Brass,Tin plated
|
|
Poles
|
2~24poles
|
|
Certificate
|
CQC
|
Superior Quality and Durability
Our Yongxing Pluggable Terminal Block is crafted from high-quality plastic with a matte lamination finish, ensuring both aesthetic appeal and longevity. The brass, tin-plated contacts offer excellent conductivity and resistance to corrosion, making it ideal for demanding industrial, automotive, and electric power applications.
Wide Operating Temperature Range
With an operating temperature range of -40℃ to +150℃, our terminal block can withstand extreme conditions, ensuring reliable performance in any environment.
Competitive Pricing and Wholesale Availability
As a factory direct supplier, we offer competitive pricing and wholesale availability on our Yongxing Pluggable Terminal Block. Choose us for your electrical component needs and enjoy superior quality, durability, and value for money.
