Description

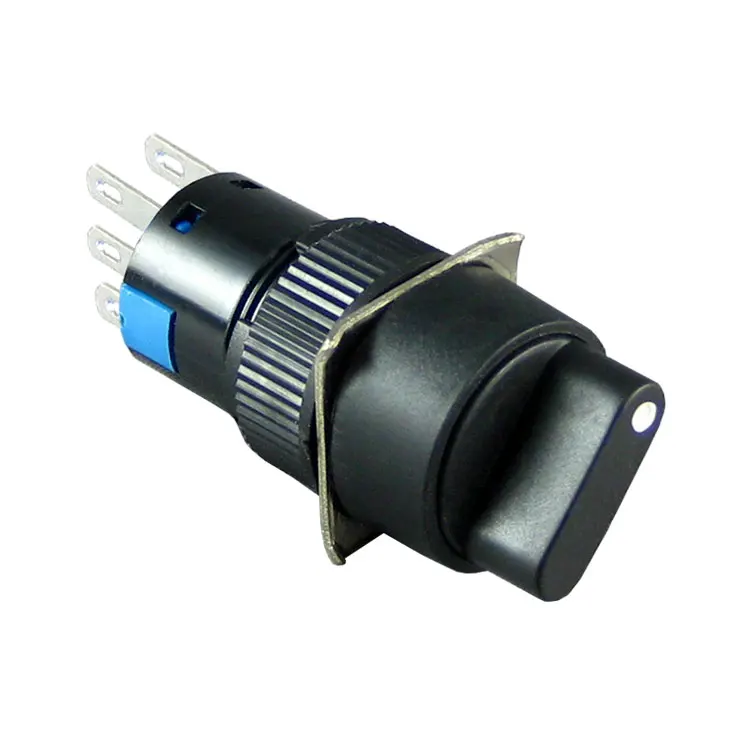

Introducing our Yongxing 3-position, 6-pin rotary switch, a high-quality product designed for the electronic industry. As a factory-direct supplier, we offer competitive wholesale prices. This switch features a maximum rating current of 3A and voltage of 250V AC, ensuring reliable performance. With a contact resistance of ≤50MΩ and insulation resistance of ≥100MΩ, it guarantees safety and efficiency. The switch has a dielectric strength of 1,500V, electronic life of 50,000 cycles (momentary) and 25,000 cycles (alternate), and a mechanical life of 200,000 cycles (momentary) and 50,000 cycles (alternate), making it highly durable. It operates within a temperature range of -25°C to +55°C and has an IP40 rating, ensuring protection against dust. The panel cut-out is φ16mm, and it has a single pole (SP) with a round operating top shape. This switch stands out with its BCD (Binary-Coded Decimal) functionality, providing a unique advantage over similar products on the market. We offer excellent after-sales service and are committed to customer satisfaction. Choose our Yongxing rotary switch for your electronic needs.
| Max. Rating Current & Voltage (Resistive Load) | 3A 250V AC |
| Contact Resistance | ≤50MΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | 1,500V |
| Electronic Life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical Life(cycles) | Momentary:200,000 Alternate:50,000 |
| Operating temperature | -25℃~+55℃ |
| IP code | IP40 |

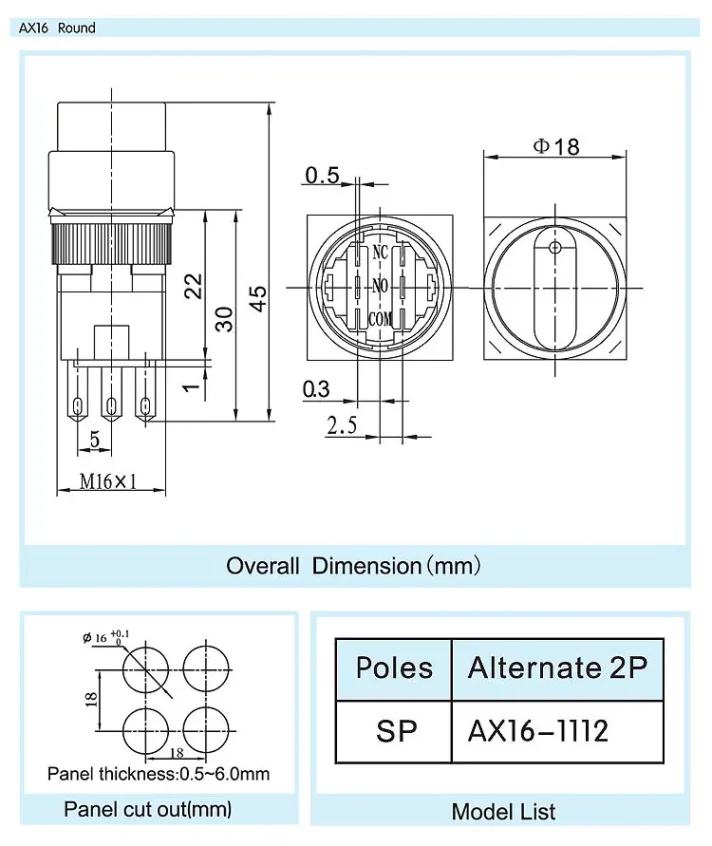

| Panel cut out | φ16mm |
| Poles | SP(Single Pole) |
| Operating Top shape | Round |
| Position | 2 position |
Product Functionality
Our Yongxing rotary switch offers 3 positions and 6 pins, providing versatile control options for various electronic applications. The BCD functionality allows for binary-coded decimal control, enhancing its utility in complex systems.
Product Advantages
With a high maximum rating current and voltage, this switch ensures reliable performance under demanding conditions. Its durable construction and long mechanical life make it a cost-effective choice for industrial use.
Why Choose Us
As a factory-direct supplier, we offer competitive wholesale prices and excellent after-sales service. Our Yongxing rotary switch is CE and RoHS certified, guaranteeing quality and safety. Choose us for your electronic switch needs.
