Description

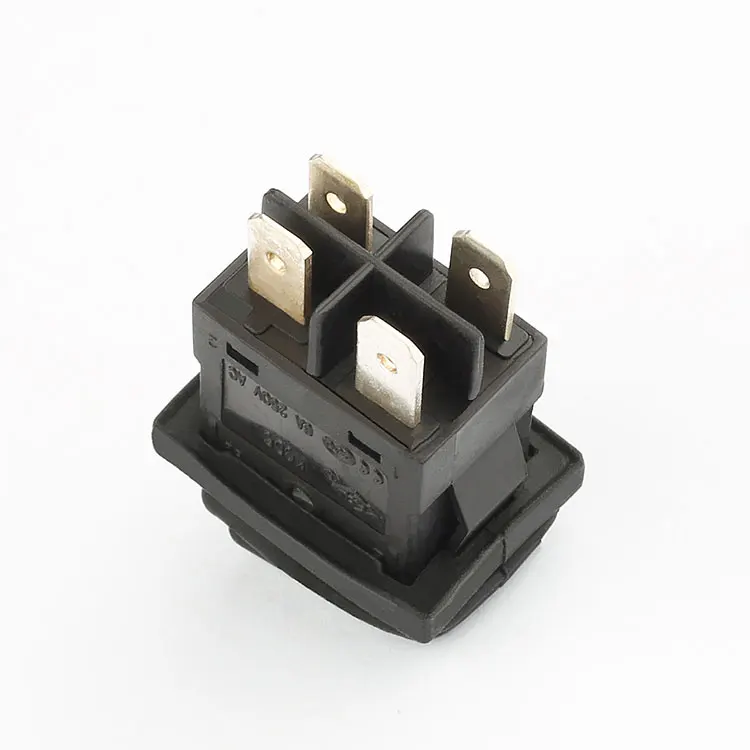

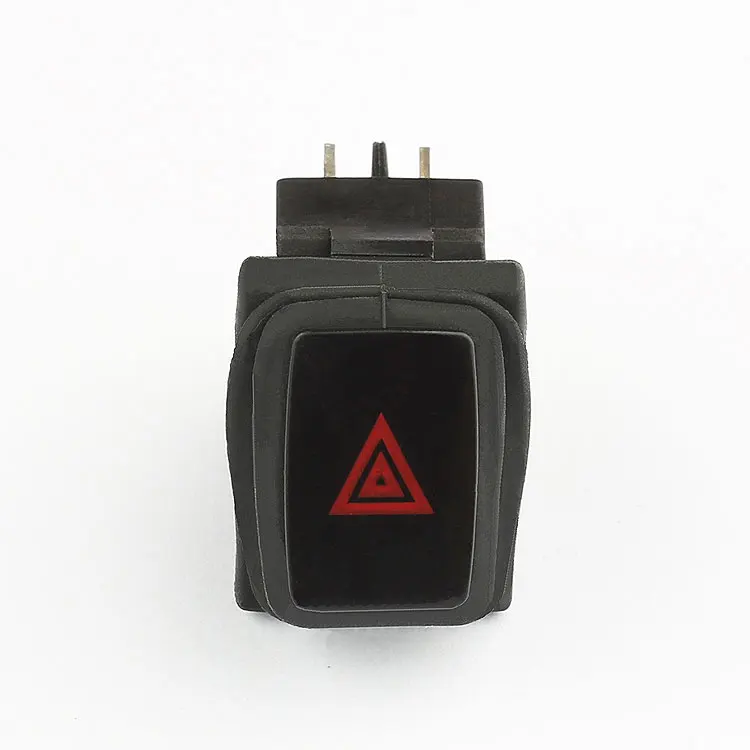

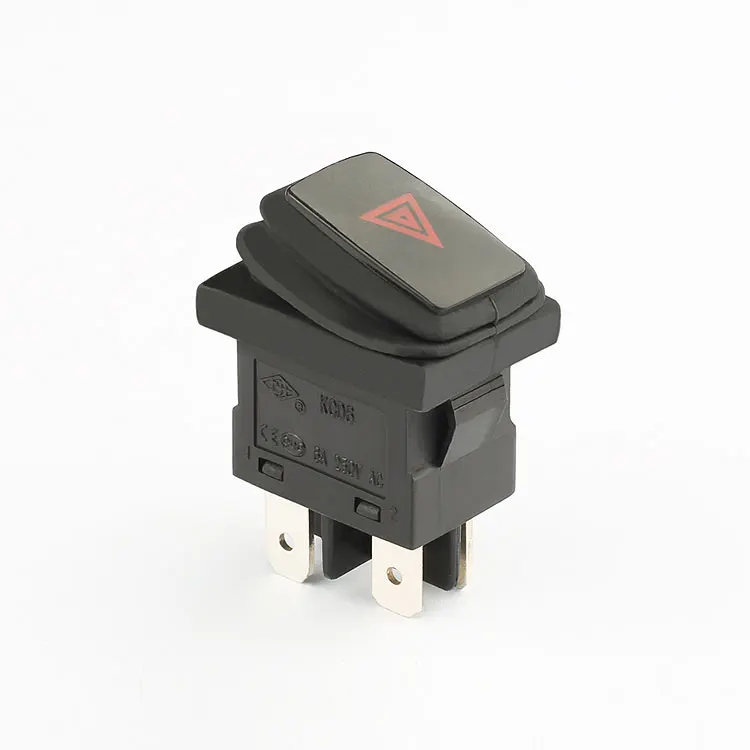

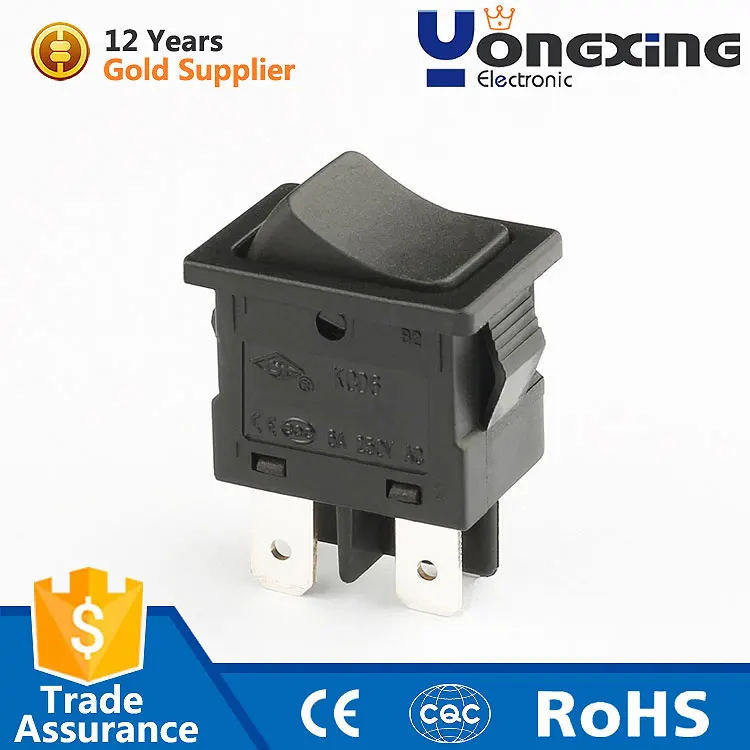

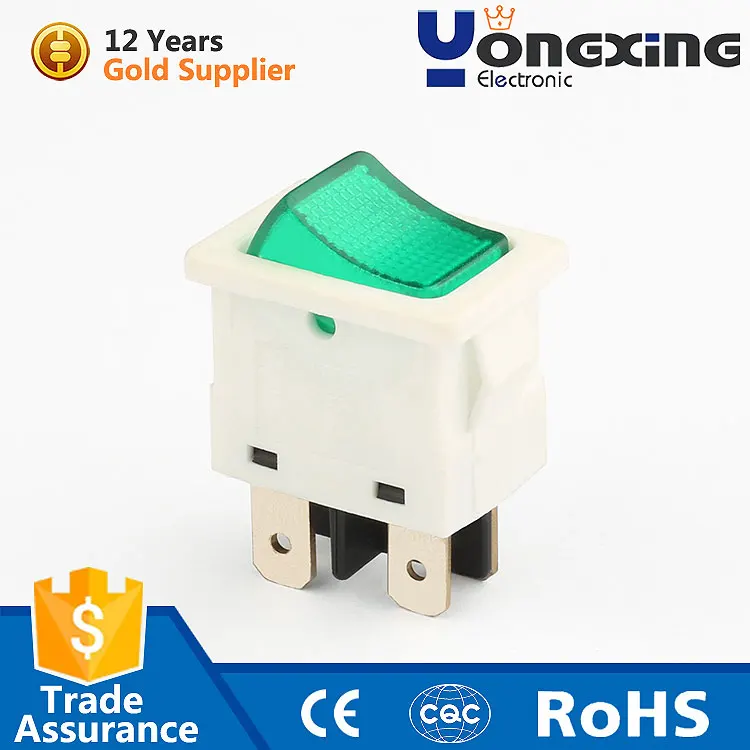

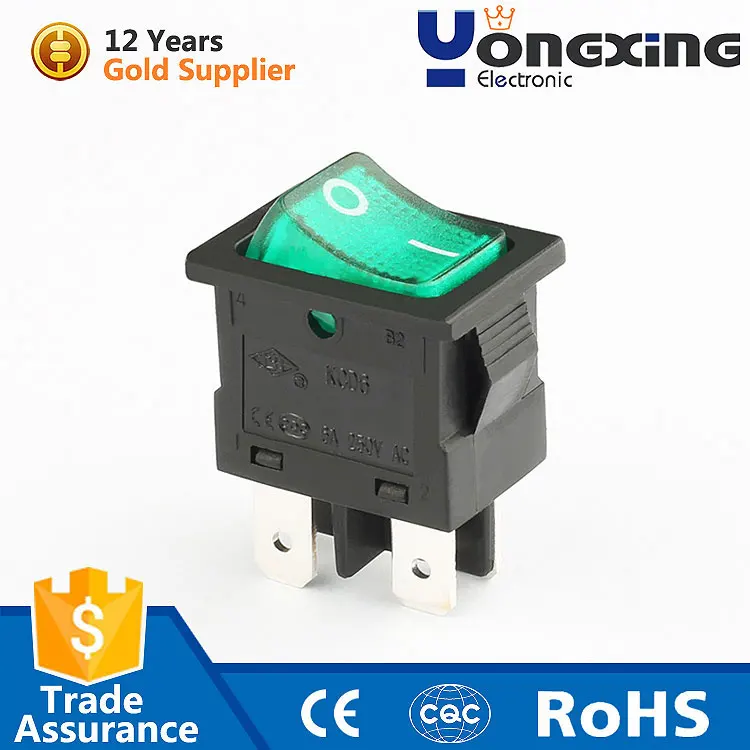

Yongxing Waterproof Rocker Switch with Light – Factory Direct Supply
Looking for a reliable waterproof rocker switch with light? Yongxing, a leading factory and supplier, offers high-quality switches that meet your needs. Our KCD6 model switch is designed to operate at a maximum current of 6A and a maximum voltage of 250V, making it suitable for a wide range of applications.
Product Specifications
- Brand Name: Yongxing
- Model Number: KCD6
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥1000MΩ
- Dielectric Strength: 1500VAC/1min
- Mechanical Life: 50,000 cycles
- Electrical Life: 10,000 times
- Operating Temperature: T85
- Material: PA66
- Certifications: CCC, CQC, CE, ENEC, UL
Product Advantages
Our waterproof rocker switch with light stands out from the competition with its exceptional quality and reliability. As a factory direct supplier, we offer competitive prices and the ability to customize switches to meet your specific requirements. With 60 senior engineers and a perfect development process, we ensure that all our products meet the highest standards.
Applications
This switch is ideal for use in various electrical appliances, industrial equipment, and outdoor applications where waterproofing and illumination are required. Its durable construction and long electrical life make it a cost-effective choice for your projects.
After-Sales Service
We are committed to providing excellent after-sales service. If you have any questions or need assistance, please don’t hesitate to contact us. We are here to help!
| Contact Resistance | ≤50m Ω |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles momentary rocker switch on off on |
| Certification |
CQC , CE , UL , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
16R(4)A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
16(4)A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |
Why Choose Yongxing Waterproof Rocker Switch with Light?
Our waterproof rocker switch with light offers exceptional quality and reliability, making it the perfect choice for your electrical projects. With a maximum current of 6A and a maximum voltage of 250V, it can handle a wide range of applications.
What Makes Our Switch Stand Out?
As a factory direct supplier, we offer competitive prices and the ability to customize switches to meet your specific needs. Our switch is made from high-quality PA66 material, ensuring durability and long life. Additionally, it is waterproof and illuminated, making it ideal for use in various environments.
Where Can You Use Our Switch?
Our switch is suitable for use in electrical appliances, industrial equipment, and outdoor applications where waterproofing and illumination are required. Its reliable performance and long electrical life make it a cost-effective choice for your projects.
